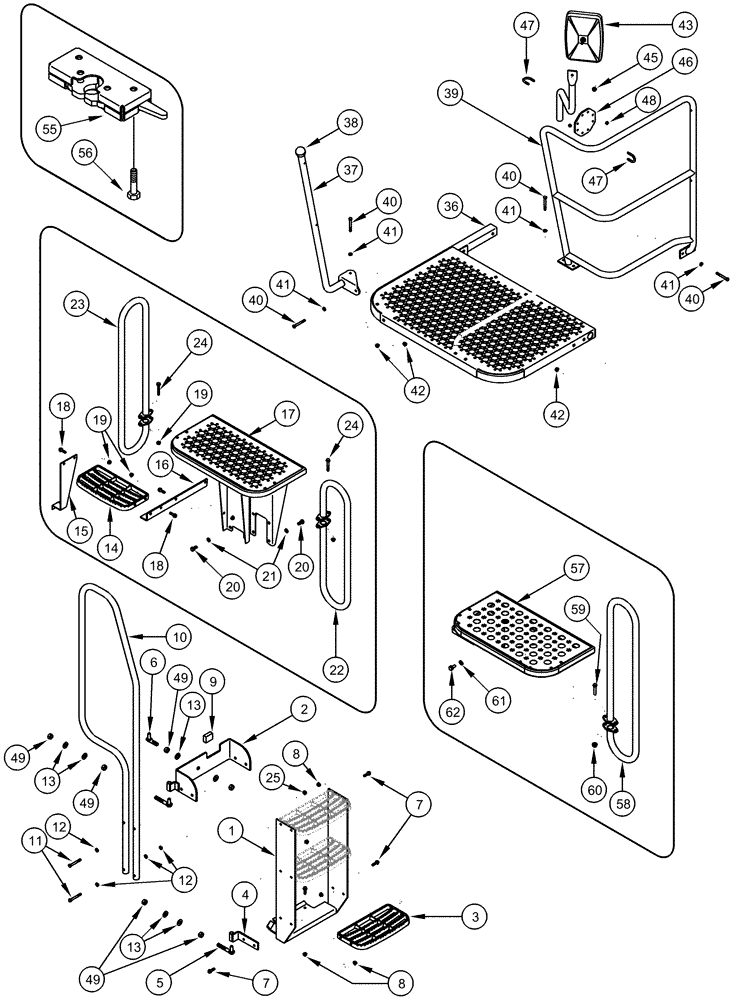

Запчасти Case IH 420 (09F-15) - DRUM LADDER, STEP AND CAB PLATFORM (12) - CHASSIS

1

437571A1

SUPPORT

Ladder Base

1шт.

2

437572A1

SUPPORT

Ladder, Upper

1шт.

3

87270245

STEP

3шт.

4

437573A1

HINGE

Drum Ladder

1шт.

5

437580A1

PIVOT PIN

100 mm (3-15/16")

2шт.

6

437581A1

PIVOT PIN

60 mm (2-3/8")

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

9шт.

8

231-5146

FLANGE NUT,3/8"-16

9шт.

9

187884C1

SEALING STRIP,50mm L

51 mm (2"), Cut From 187885C1

1шт.

10

437579A1

HANDRAIL

Drum Ladder, Front

1шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

12

495-81129

WASHER,13/32" x 3/4" x .120"

8шт.

13

495-11066

WASHER,5/8", SAE

6шт.

NSS

NOT SOLD SEPARAT

STEP ASSY., Drum Number 1 (4 Row Wide), Drum Number 1 (5 Row Narrow), Inc. 14 - 24

1шт.

14

257375A1

STEP

1шт.

15

440864A1

SUPPORT

1шт.

16

440863A1

ANGLE

1шт.

17

87399556

STEP

Step

1шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

10шт.

19

231-5146

FLANGE NUT,3/8"-16

10шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

21

892-11012

LOCK WASHER,M12

6шт.

22

445285A1

GRAB RAIL

1шт.

23

87413926

GRAB RAIL

Drum Number 1 (4 Row Wide), Drum Number 1 (5 Row Narrow)

1шт.

24

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

4шт.

25

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

36

87345108

PLATFORM

1шт.

37

446457A1

POST

Inc. 38

1шт.

38

349014A1

KNOB

1шт.

39

440869A1

HANDRAIL

Cab Platform

1шт.

40

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

41

495-81129

WASHER,13/32" x 3/4" x .120"

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

1283403C1

MIRROR

Cab, Left Hand

1шт.

44

449402A1

TUBE

Cab Mirror, Left Hand

1шт.

45

122379A1

FLANGE NUT

3/8

1шт.

46

449401A1

PLATE

1шт.

47

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

4шт.

48

231-4215

LOCK NUT,5/16"-18, GB

8шт.

49

425-1010

NUT,5/8"-11, G5

6шт.

55

141224A1

LATCH

1шт.

56

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 1 (4 Row Narrow), Inc. 57 - 62

1шт.

57

87633577

STEP

1шт.

58

447138A1

HANDRAIL

1шт.

59

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

2шт.

60

231-5146

FLANGE NUT,3/8"-16

2шт.

61

892-11012

LOCK WASHER,M12

2шт.

62

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.
