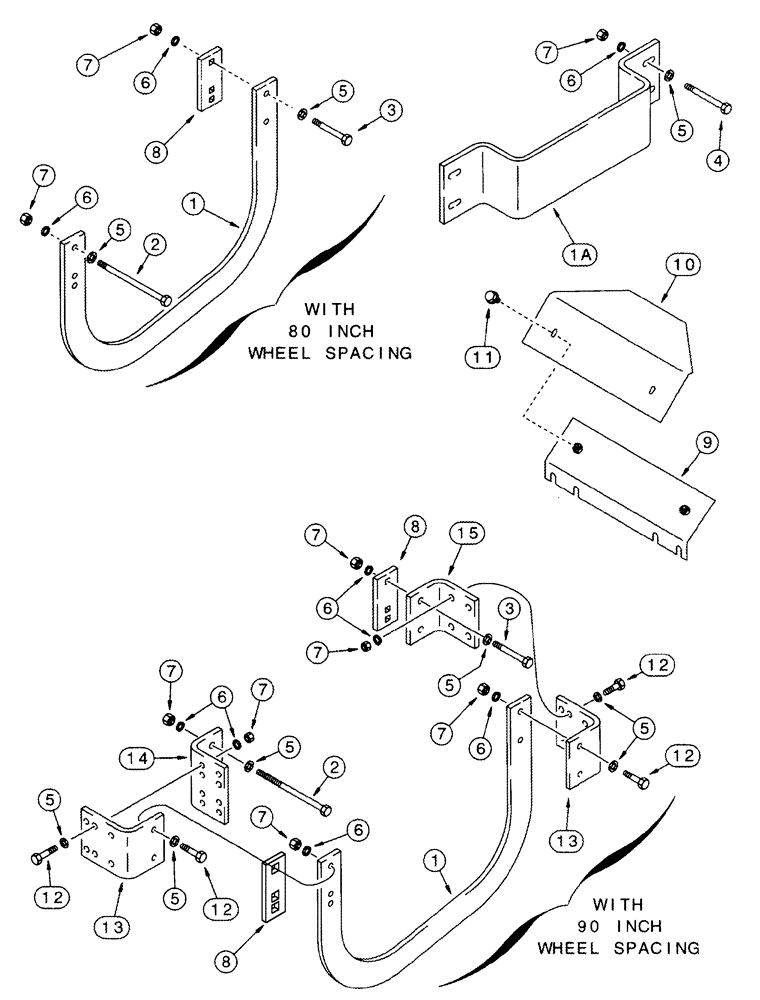

Запчасти Case IH 420 (09F-10) - MUD SCRAPERS (12) - CHASSIS

1

1546386C2

SUPPORT

4 Row Wide, 5 Row Narrow

2шт.

1a

144557A1

SUPPORT

4 Row Narrow, 5 Row Narrow - Dual Ready

2шт.

2

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

4шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4 Row Wide, 5 Row Narrow

4шт.

4

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

5 Row Narrow - Dual Ready

4шт.

5

495-11053

WASHER,1/2", SAE

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

8

215520C3

LARGE PLATE

PLATE, LARGE Mud Blade, 4 Row Wide, 5 Row Narrow

4шт.

9

123970A1

SUPPORT

Manifold Bulkhead Fitting, 80" Wheel Spacing, 4 Row Wide

2шт.

10

123972A1

SHIELD

Manifold Bulkhead Fitting, 80" Wheel Spacing, 4 Row Wide

2шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

12

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

5 Row Narrow W/90" Wheel Spacing

20шт.

13

1990141C1

SUPPORT

5 Row Narrow W/90" Wheel Spacing

4шт.

14

1990139C1

SUPPORT

Front Mount, 5 Row Narrow W/90" Wheel Spacing

2шт.

15

1990140C1

SUPPORT

Rear Mount, 5 Row Narrow W/90" Wheel Spacing

2шт.
