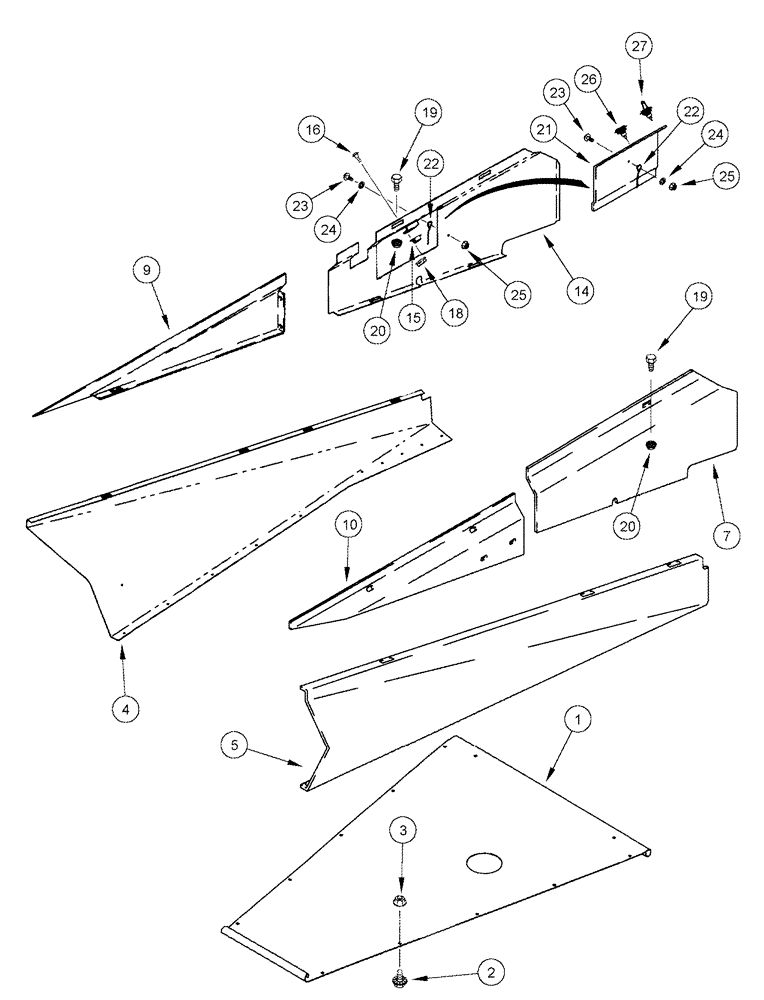

Запчасти Case IH 420 (09F-09) - PLANT GUARD - PAN, COVERS AND MUD SHIELDS - ALL 4 AND 5 ROW MODELS (12) - CHASSIS

1

181670A4

PLATE

Bottom, Belly Pan

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

3

231-5146

FLANGE NUT,3/8"-16

10шт.

4

181668A2

GUARD

Left Hand

1шт.

5

181669A2

GUARD

Right Hand

1шт.

7

119136A2

GUARD

Lower Front, Right Hand

1шт.

9

144196A1

GUARD

Rear, Left Hand Side

1шт.

10

144197A1

GUARD

Rear, Right Hand Side

1шт.

14

283550A1

SHEET

Lower Front, Left Hand

1шт.

15

292504A1

CASE

Slam Latch

1шт.

16

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

17

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

(Not Shown)

2шт.

18

87825

NUT,#10-32

2шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

21

283551A2

DOOR

Access, Water Filter

1шт.

22

126840A1

CABLE

Anchor

1шт.

23

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

24

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

292505A1

LATCH

Slam, Tool Operated, If Equipped

1шт.

27

292503A1

LATCH

Slam, If Equipped

1шт.
