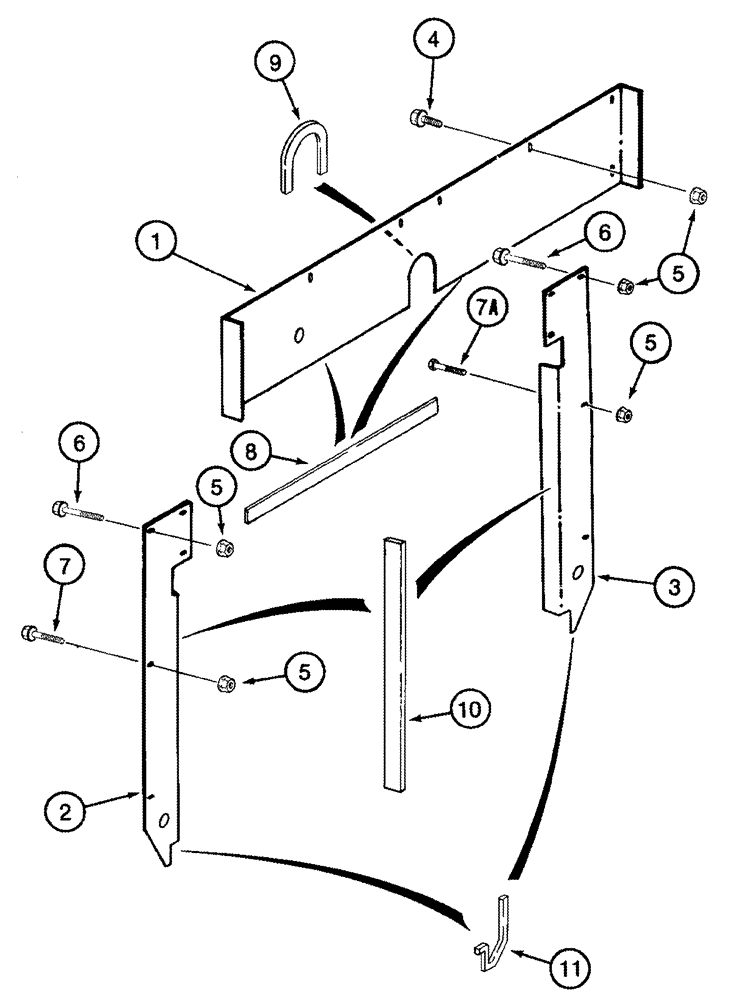

Запчасти Case IH 420 (09F-05) - SHIELDS, FUEL TANK (12) - CHASSIS

1

1984051C1

COVER

Upper

1шт.

2

1984052C2

COVER

Left Hand Side

1шт.

3

1984053C2

COVER

Right Hand Side

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

6

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

2шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

7a

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

8

87110C1

SEAL

Upper Cover, 451 mm (17-3/4"), Cut From 1263038C1

2шт.

9

87111C2

SEAL

Upper Cover, 175 mm (6-7/8"), Cut From 1263038C1

1шт.

10

1990499C1

SEAL

Side Cover, 508 mm (20"), Cut From 73215C1

2шт.

11

1330169C1

SEAL

Side Cover, 262 mm (10-5/16"), Cut From 195917C1

2шт.
