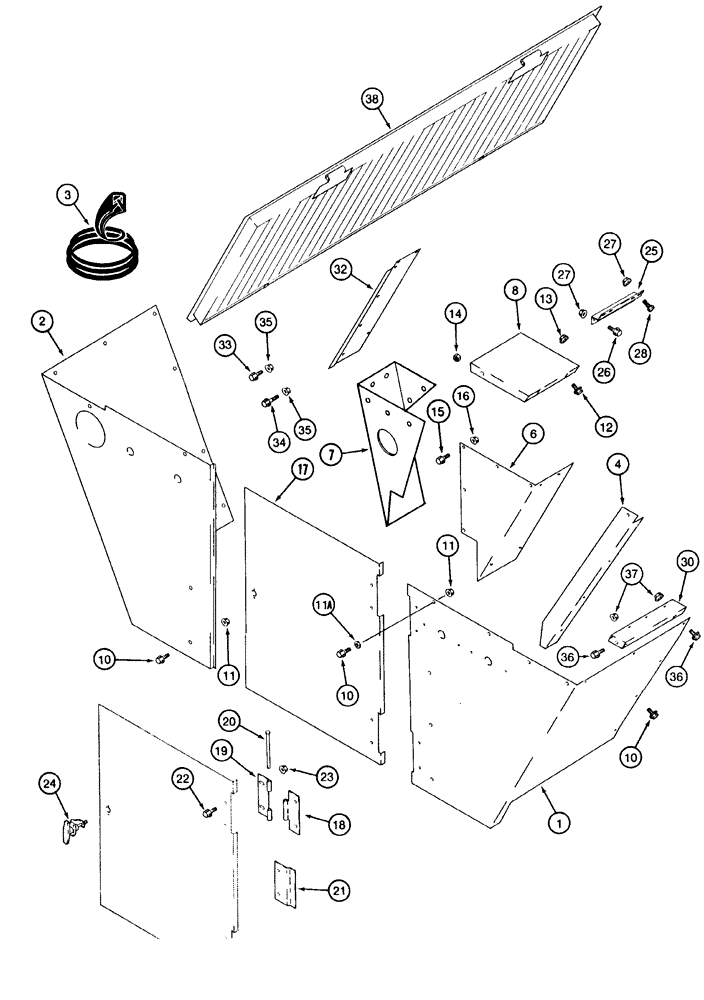

Запчасти Case IH 420 (09F-03) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

176850A2

SHIELD

Rear Outer, Right Hand

1шт.

Model Year 2008 And Prior

1шт.

1

84173204

BRACKET

Shield, Rear Outer, Right Hand

1шт.

Model Year 2009 And After

1шт.

2

176799A6

GUARD

Rear Outer, Left Hand, If Equipped

1шт.

Model Year 2008 And Prior

1шт.

2

84173205

BRACKET

Shield, Rear Outer, Left Hand

1шт.

Model Year 2009 And After

1шт.

3

87063C3

SEAL

414 mm (16-5/16"), Cut from 1330108CX

1шт.

4

176433A2

CONDUIT

Vertical Front, Right Hand

1шт.

5

176431A2

CONDUIT

Vertical Front, Left Hand (Not Shown)

1шт.

6

393218A1

COVER ASSY

Rear Inner, Right Hand

1шт.

7

87587545

COVER ASSY

Rear Inner, Left Hand, W/Battery Disconnect

1шт.

7a

284315A1

DECAL

Battery Disconnect (Not Shown)

1шт.

8

176497A2

COVER

Rear Screen, Right Hand

1шт.

9

176494A2

COVER

Rear Screen, Left Hand (Not Shown)

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

26шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

15шт.

11a

495-11034

WASHER,5/16", SAE

4шт.

12

488837C1

SPRING NUT

Speed, 5/16

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

488837C1

SPRING NUT

Speed, 5/16

16шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

17

177032A1

PANEL

Rear Door

1шт.

18

1990317C2

HINGE

Rear Door, Outer

2шт.

19

1990187C2

HINGE

Rear Door, Inner

2шт.

20

1349860C1

PIN,7.94mm OD x 129mm L

Hinge

2шт.

21

1990318C1

LARGE PLATE

PLATE, LARGE Door Stop

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

24

1990266C1

HANDLE

Door, If Equipped

1шт.

25

1278813C3

SUPPORT

Cover, Lower

2шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

28

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

29

176322A1

SUPPORT

Front Filler, Left Hand (Not Shown)

1шт.

30

176325A1

SUPPORT

Front Filler, Right Hand

1шт.

31

177024A1

SUPPORT

Screen Frame, Left Hand (Not Shown)

1шт.

32

177025A1

SUPPORT

Screen Frame, Right Hand

1шт.

33

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

34

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

22шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

38

363036A1

FILTER

Rear

2шт.
