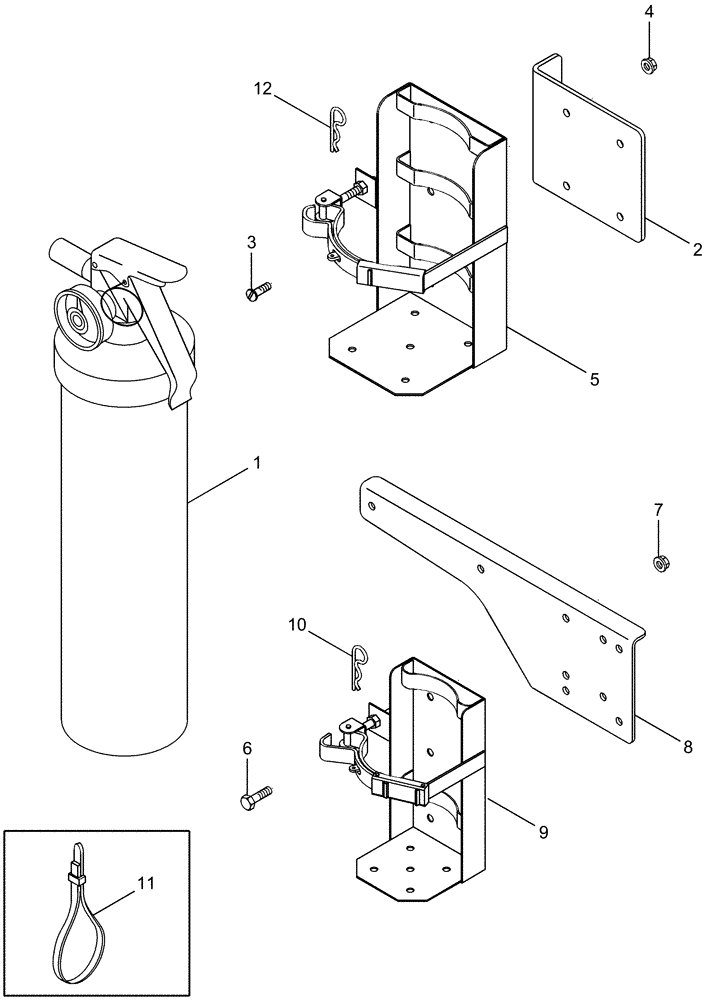

Запчасти Case IH 420 (09E-22) - FIRE EXTINGUISHER (10) - CAB & AIR CONDITIONING

1

549975C91

FIRE EXTINGUISHER

10 Lb., U.S. Only

1шт.

1

87425179

FIRE EXTINGUISHER

10 Lb., Australia Only

1шт.

1a

B504765

FIRE EXTINGUISHER

20 Lb., U.S. Only

1шт.

1a

87425211

FIRE EXTINGUISHER

20 Lb., Australia Only

1шт.

2

87411141

BRACKET

Fire Extinguisher, Rear

1шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

6шт.

4

231-5146

FLANGE NUT,3/8"-16

6шт.

5

87411414

BRACKET

Fire Extinguisher

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

14шт.

7

231-5146

FLANGE NUT,3/8"-16

12шт.

7

131-856

SPRING NUT,Ret, J, 3/8"-16

2шт.

8

87411062

SUPPORT

Fire Extinguisher, Front

1шт.

9

87414154

BRACKET

Fire Extinguisher

1шт.

9

87561730

BRACKET

Fire Extinguisher, Australia Only

1шт.

10

586591R1

COTTER PIN

1шт.

11

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

2шт.

12

BN2391623

SPRING CLIP

1шт.
