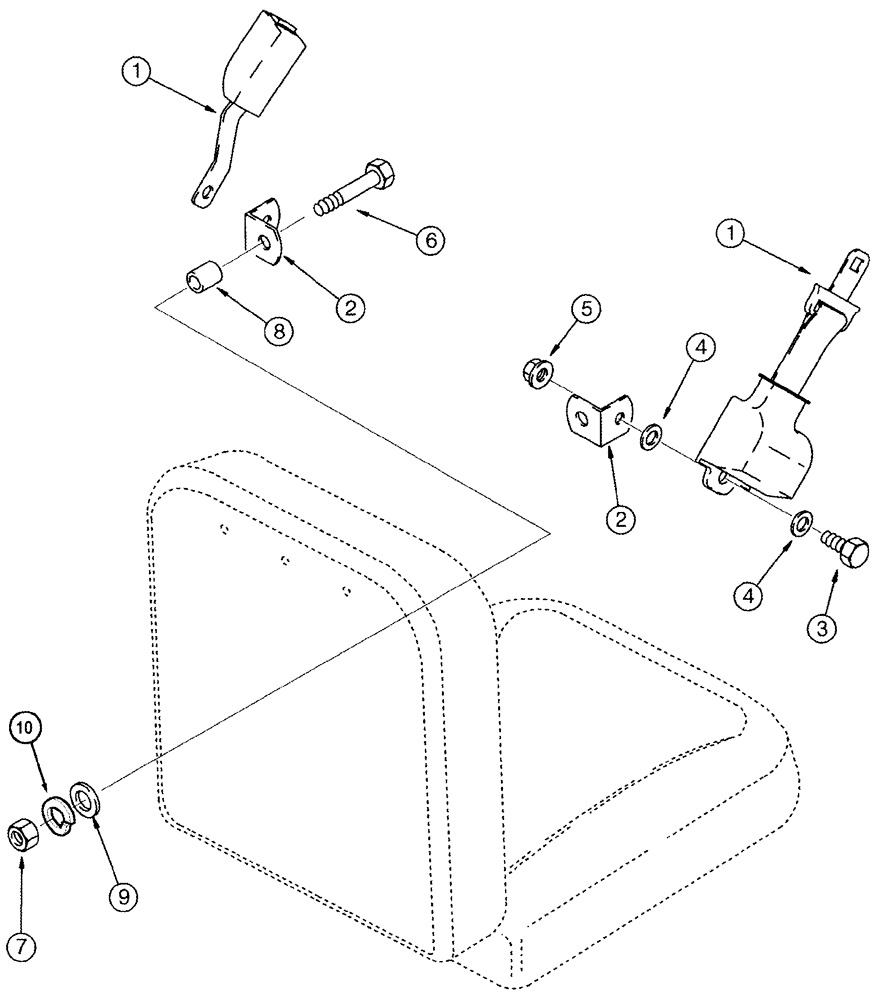

Запчасти Case IH 420 (09E-10) - SEAT, INSTRUCTIONAL - BELTS (10) - CAB & AIR CONDITIONING

1

224808A1

SAFETY BELT ,48mm W x 1219mm L

1шт.

2

224809A1

SUPPORT

2шт.

3

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

4

495-81009

WASHER,.469" x 1" x .120"

2шт.

5

231-5447

FLANGE NUT,Flg, 7/16"-20

2шт.

6

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

2шт.

8

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

2шт.

9

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

353-410

PLUG,Dome, .875" hole, Nylon

(Not Shown)

1шт.
