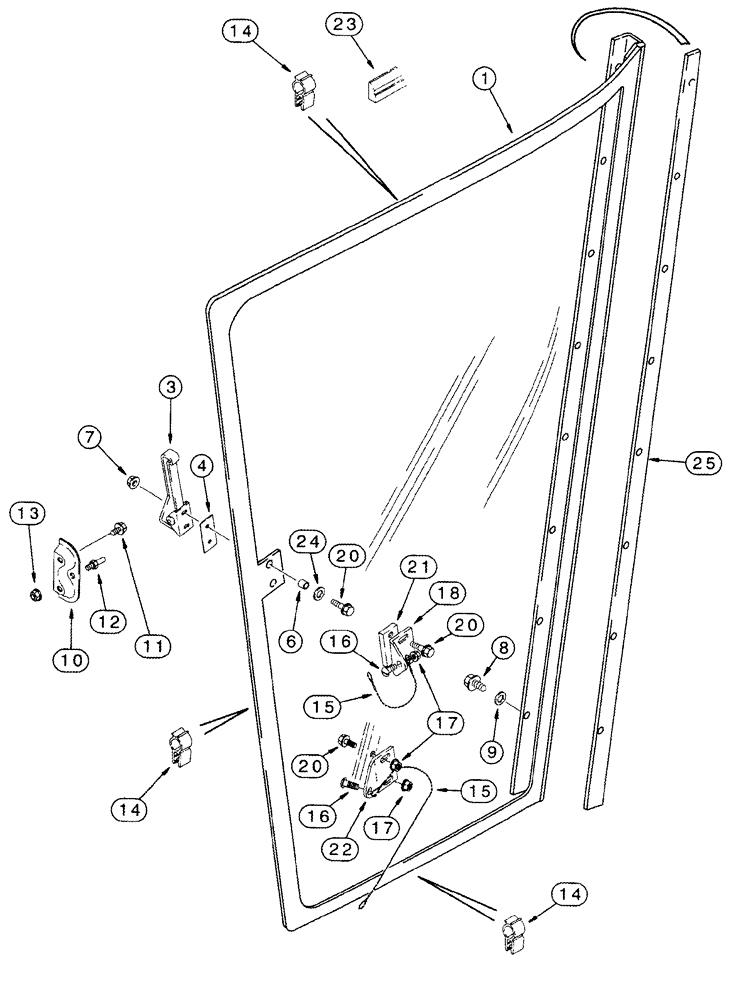

Запчасти Case IH 420 (09E-03) - CAB - DOOR ASSY, RIGHT HAND (10) - CAB & AIR CONDITIONING

1

186390A2

GLASS

Incl. hinge

1шт.

3

1955184C1

LEVER

Right Hand Side

1шт.

4

194190A2

GASKET,3.2mm Thk

Lever

1шт.

6

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

2шт.

7

97005C1

FLANGE NUT

M6

2шт.

8

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

8шт.

9

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

8шт.

10

117723A2

SUPPORT

Door Catch

1шт.

11

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

117724A1

PIN,10mm OD x 37.8mm L

Door Catch

1шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

14

234089A1

DOOR SEAL

4483 mm (176-1/2"), Door

2шт.

15

182965A1

CABLE

Door to Cab Frame Post

1шт.

16

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

2шт.

17

832-10406

NUT,M6 x 1, Cl 8

2шт.

18

256321A1

SUPPORT

, Serial Range: Cable-Post

1шт.

19

1990502C1

WASHER

1/4 x 13/16 x 1/16" (Not Shown)

2шт.

20

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

M6 x 20

2шт.

20

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

M6 x 25

2шт.

21

183037A1

BLOCK ASSY.

1шт.

22

181748A1

SUPPORT

Cable to Door Glass

1шт.

23

232801A1

DOOR SEAL

1016 mm (40"), Door, Upper

1шт.

24

225913A1

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

2шт.

25

193316A1

SHIM

Door Hinge

1шт.
