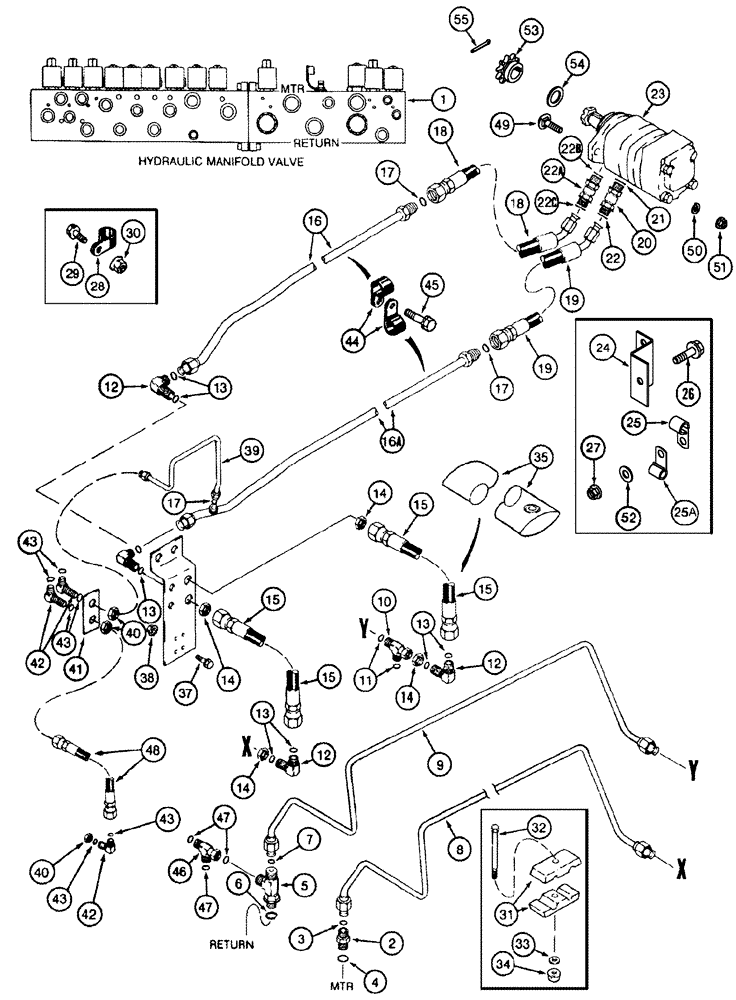

Запчасти Case IH 420 (08-33) - CONVEYOR UNLOADER MOTOR SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold

1шт.

See Figure(s) 08-17 - 08-20

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. Ref. 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 6, 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

1988938C2

TUBE

Supply

1шт.

9

1988939C2

TUBE

Return

1шт.

10

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Inc. 11

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

12

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Inc. 13

4шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

15

1984274C1

HOSE,19.05mm ID x 2500mm L

2500 mm (98-7/16"), Bulkhead

2шт.

16

1983197C2

HYD TUBE,0.75" OD

Bulkhead

1шт.

16a

223463A1

TUBE,0.75" OD

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

18

140183A1

HYDRAULIC HOSE

1732 mm (68-3/16"), Conveyor Return

1шт.

19

191114A1

HOSE

1735 mm (68-5/16"), Conveyor Supply

1шт.

20

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Incl. 21, 22

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22a

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 22B, 22C

1шт.

22b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22c

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

175430A2

MOTOR, HYDRAULIC

1шт.

4 Row Wide

1шт.

24

335724A1

SUPPORT

1шт.

25

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

25a

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

2шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

28

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

29

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

1546027C1

CLAMP

2шт.

32

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

33

495-21038

WASHER,5/16"

1шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

35

134552A2

SLEEVE

1905 mm

1шт.

36

1349852C1

SUPPORT

Bulkhead

1шт.

37

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

223920A1

HYD TUBE

1шт.

40

201-919

BHD LOCK NUT,1" - 14

3шт.

41

185479A1

SUPPORT

1шт.

42

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 43

3шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

44

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

45

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

46

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Inc. 47

1шт.

47

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

48

1984269C1

HOSE,15.88mm ID x 2500mm L

2500 mm (98-7/16"), Auger Supply

1шт.

49

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

4шт.

50

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

51

425-108

NUT,1/2" - 13, Gr 5

4шт.

52

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

53

1260364C1

SPROCKET ASSY.

1шт.

54

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

55

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.
