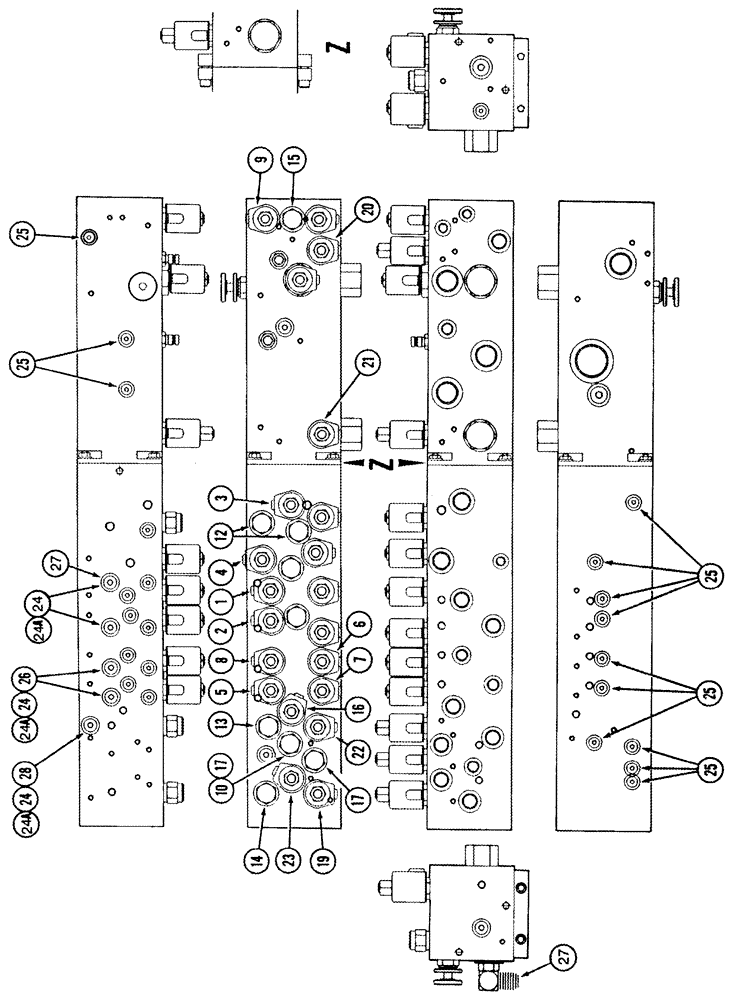

Запчасти Case IH 420 (08-19) - HYDRAULIC MANIFOLD VALVE - UNITS WITHOUT ROCKSHAFT KICKBACK (07) - HYDRAULICS

87445250

VALVE

Inc. 1 - 56

1шт.

1

1288972C1

SOLENOID VALVE

2-Way, Basket Door Lower

1шт.

2

1288972C1

SOLENOID VALVE

2-Way, Basket Door Raise

1шт.

3

1288972C1

SOLENOID VALVE

2-Way, Compactor Lower

1шт.

4

1288972C1

SOLENOID VALVE

2-Way, Compactor Raise

1шт.

5

1288972C1

SOLENOID VALVE

2-Way, Drum Field Pressure

1шт.

6

1288972C1

SOLENOID VALVE

2-Way, Drum Field Tank

1шт.

7

1288972C1

SOLENOID VALVE

2-Way, Drum Service Tank

1шт.

8

1288972C1

SOLENOID VALVE

2-Way, Drum Service Pressure

1шт.

9

1288972C1

SOLENOID VALVE

2-Way, Inc. 9A, Drum Lube

1шт.

9a

149942C1

SEAL KIT

Replacement (Not Shown)

1шт.

10

107467A2

ORIFICE

1шт.

12

1542812C2

VALVE

Inc. 12A

2шт.

12a

126054A1

SEAL PACKAGE

Flow Control (Not Shown)

1шт.

13

1346479C2

VALVE

Right Hand Drum Lift

1шт.

14

1346479C2

VALVE

Left Hand Drum Lift

1шт.

15

369660A1

VALVE

Inc. 15A, Drum Lube

1шт.

15a

126054A1

SEAL PACKAGE

Flow Control (Not Shown)

1шт.

16

1288958C2

SOLENOID VALVE

3-Way, Left Hand Manual Drum Lift

1шт.

17

295115A1

PLUNGER ASSY.

3-Way, Cartridge

2шт.

19

1288958C2

SOLENOID VALVE

3-Way, Right Hand Manual Drum Lift

1шт.

20

1288958C2

SOLENOID VALVE

3-Way, Basket Raise

1шт.

21

1288958C2

SOLENOID VALVE

3-Way, Unloader Motor

1шт.

22

1288958C2

SOLENOID VALVE

3-Way, Left Hand Auto Drum Lift

1шт.

23

1288958C2

SOLENOID VALVE

3-Way, Inc. 23A, Right Hand Auto Drum Lift

1шт.

23a

1260872C91

SEAL KIT

Seal Replacement (Not Shown)

1шт.

24

9625178

PLUG,9/16" - 18 ORB

Incl. 24A

5шт.

24a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

1341811C1

SPRING-CHECK

REPAIR KIT Inc. 25, 25A

13шт.

1341807C1

SOLENOID

10V, Inc. 22, 23

1шт.

25

278548

PLUG,Hex, 7/16"-20 ORB

10шт.

25a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Not Shown)

1шт.

26

107416A1

PLUG

2шт.

27

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 27A, 27B

1шт.

27a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

107418A1

PLUG

1шт.

1340843C1

SOLENOID,12V

12V, Used With 1 - 9, 16 - 21, 34, 35, 36, 37, 43, 44

1шт.
