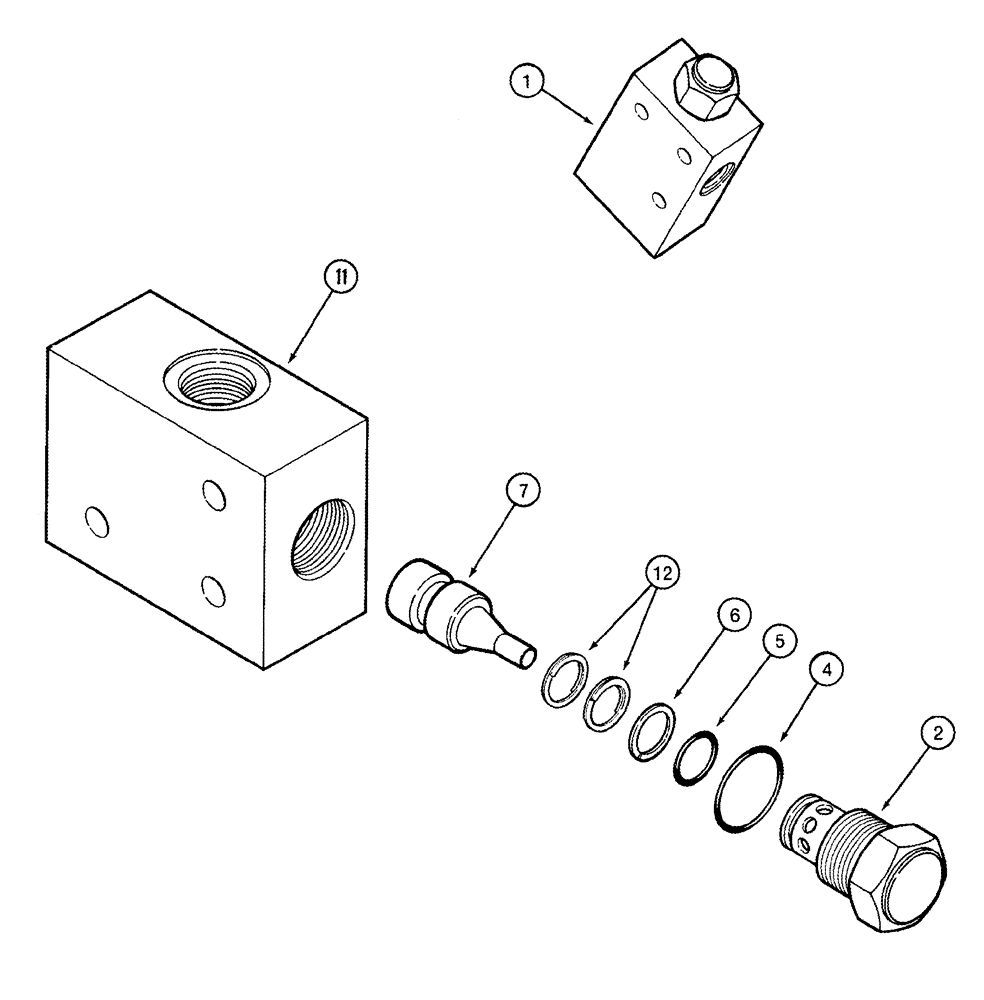

Запчасти Case IH 420 (08-16) - PILOT OPERATED CHECK VALVE (07) - HYDRAULICS

1

1346043C1

VALVE, CHECK

Pilot Operated, Inc. 2 - 12

3шт.

2

93291C1

VALVE, CHECK

1шт.

149942C1

SEAL KIT

Replacement, Inc. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER

1шт.

7

1272343C2

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

1346271C1

BACK-UP RING,Split, 12.7mm ID x 15.54mm OD x 1.47mm Thk

2шт.
