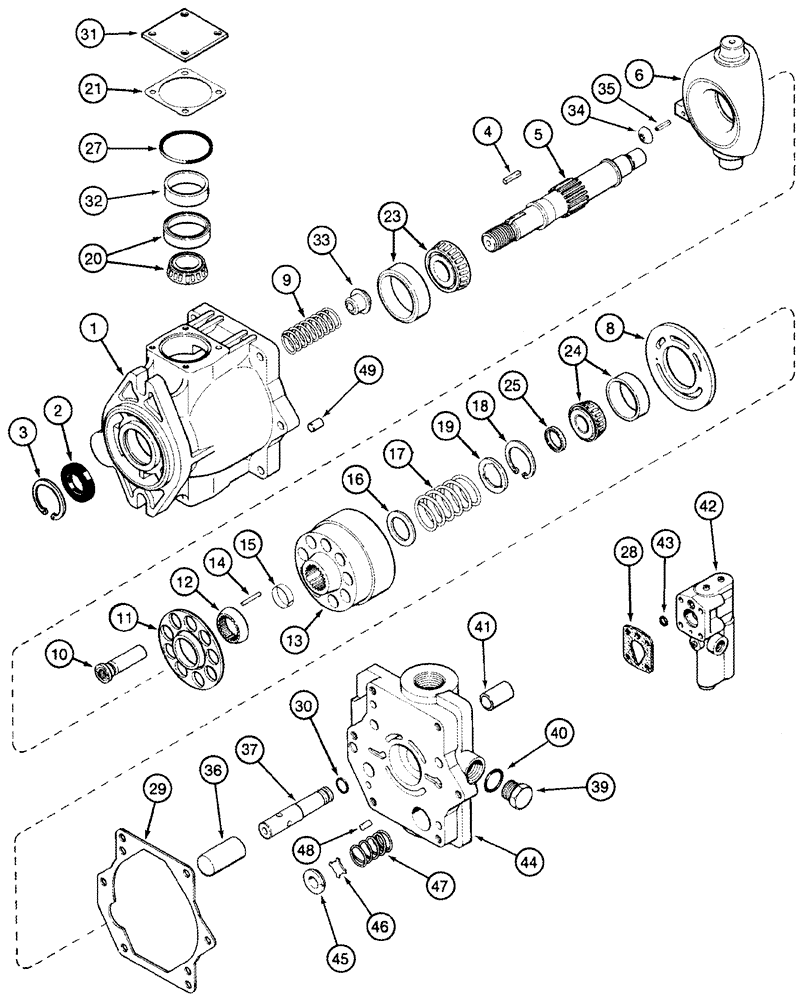

Запчасти Case IH 420 (08-05) - HYDRAULIC PISTON PUMP ASSEMBLY (07) - HYDRAULICS

434239A1

PUMP, HYDRAULIC,45.1 CC

Inc. 1 - 49

1шт.

434239A1R

REMAN-HYD PUMP

Piston

1шт.

434239A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

1шт.

3

100-21175

SNAP RING,1.75", Int, #175

1шт.

4

452779R1

KEY,1/4" Sq x 3/4", Par

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT, Drive

1шт.

6

A47284

YOKE

Pump Shaft, Swing

1шт.

8

1288980C1

PLATE

1шт.

9

A47281

SPRING

1шт.

1263239C1

REPAIR KIT

Inc. 10 - 19, Rotating Group

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON

9шт.

11

A47292

PLATE

1шт.

12

A47293

WASHER

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

14

A47296

PIN

3шт.

15

A47297

SNAP RING,7.11mm Thk, Int

1шт.

16

A47299

WASHER

1шт.

17

A47298

SPRING

1шт.

18

100-21162

SNAP RING,1.625", Int, #162

1шт.

19

A47300

SPRING WASHER

1шт.

1263241C1

WHEEL BEARING KIT

Yoke Bearing, Inc. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING, Roller

2шт.

21

145590C1

SHIM KIT

3 Sizes, Not Serviced Separately

1шт.

1263242C1

KIT

Shaft Bearing, Inc. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING, Roller

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING, Roller

1шт.

25

145582C1

KIT

SPACER, 11 Sizes, Not Serviced Separately

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING

2шт.

28

A49436

GASKET

1шт.

29

A47280

GASKET,0.53mm Thk

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING

1шт.

31

NSS

NOT SOLD SEPARAT

COVER

2шт.

32

NSS

NOT SOLD SEPARAT

SPACER

2шт.

33

NSS

NOT SOLD SEPARAT

SEAT, Yoke Bearing

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT

1шт.

35

NSS

NOT SOLD SEPARAT

PIN

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON

1шт.

37

NSS

NOT SOLD SEPARAT

ROD

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING

1шт.

41

NSS

NOT SOLD SEPARAT

COUPLER, Hydr., Gear Pump Drive

1шт.

42

1288981C2

KIT

Balance

1шт.

See Figure 08-06

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING

1шт.

44

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

45

NSS

NOT SOLD SEPARAT

SEAT

1шт.

46

NSS

NOT SOLD SEPARAT

VALVE, Check

1шт.

47

NSS

NOT SOLD SEPARAT

SPRING, Valve Block

1шт.

48

NSS

NOT SOLD SEPARAT

PIN

1шт.

49

NSS

NOT SOLD SEPARAT

PIN

2шт.

1263244C3

O-RING KIT

Inc. O-Ring, Seal, Gasket, 2, 27 - 30, 40, 43

1шт.
