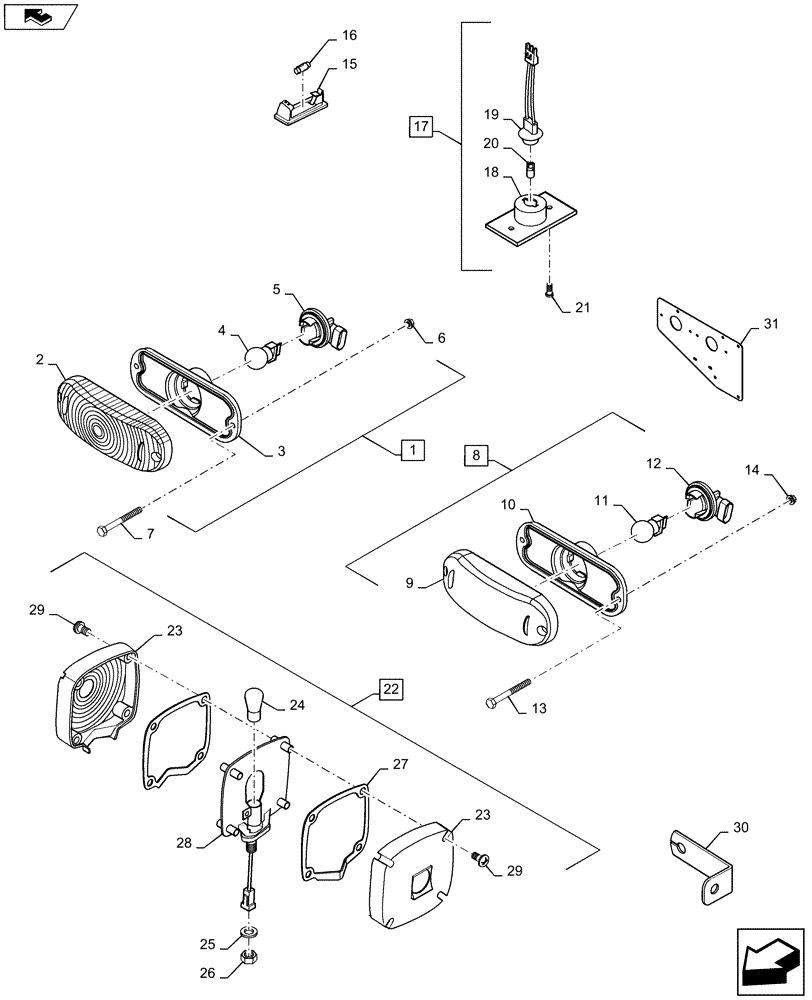

Запчасти Case IH 420 (04-24) - LAMP ASSEMBLIES - MODEL YEAR 2009 AND AFTER (06) - ELECTRICAL SYSTEMS

1

87629587

LIGHT ASSY.,12V, 27W, Amber

Rear Warning, Inc. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

LENS, Amber

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

87642985

BULB,3157, 12V, 26.5W, Clear

1шт.

5

87642986

LAMP SOCKET

1шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

7

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

4шт.

8

87627854

LIGHT ASSY.,12V, 27W, Red

Stop-Tail, Inc. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

LENS, Red

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

11

87642985

BULB,3157, 12V, 26.5W, Clear

1шт.

12

87642986

LAMP SOCKET

1шт.

13

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

4шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

15

1983391C1

LAMP,12V, 10W

Dome, Inc. 16

2шт.

16

1094378R1

BULB,J, 12V, 2W

Bulb, Hazard Flasher

1шт.

17

83882C91

LAMP

Console, Inc. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

LENS, Order 83882C91

1шт.

19

107329C1

WIRE HARNESS

1шт.

20

D71346

TAIL LAMP,12V

No. 168

1шт.

21

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

22

429000A1

LAMP

Side Warning, Inc. 23 - 29

2шт.

23

199954A1

PACKAGE

Amber

2шт.

24

A14553

BULB

No. 57

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL, Rubber

2шт.

28

NSS

NOT SOLD SEPARAT

BODY

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW

8шт.

30

1283289C1

ANGLE

Mounting

2шт.

31

84173176

BRACKET

Tail Light

2шт.
