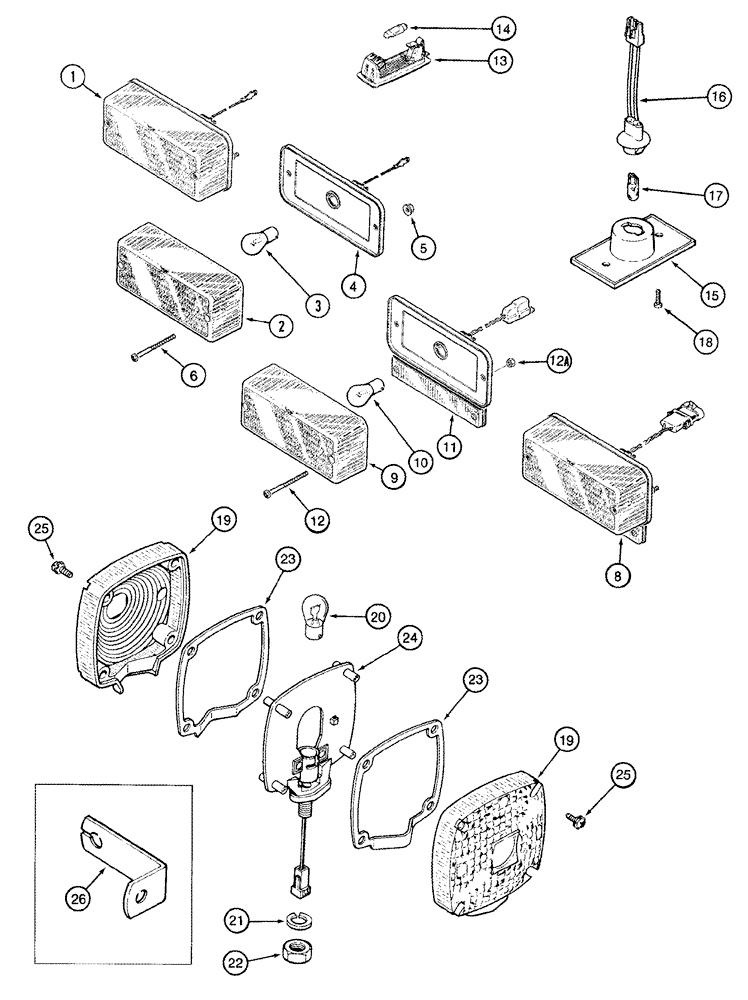

Запчасти Case IH 420 (04-23) - LAMP ASSEMBLIES - MODEL YEAR 2008 AND PRIOR (06) - ELECTRICAL SYSTEMS

1

130882C91

LAMP

Rear Warning, Inc. 2 - 4

2шт.

2

130883C1

LENS

Amber

1шт.

3

529068

BULB,#1156, 12V, 21W

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE, Order 130882C91

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

6

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

8шт.

8

92260C1

LAMP,12V, 27W, Red

Stop-Tail, Inc. 9 - 11

2шт.

9

216045C1

LENS

Red

1шт.

10

T34857

BULB,C6, #1157, 12.8V

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE, Order 92260C1

1шт.

12

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

4шт.

12a

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

13

1983391C1

LAMP,12V, 10W

Dome, Inc. 14

2шт.

14

1094378R1

BULB,J, 12V, 2W

Bulb, Hazard Flasher

1шт.

83882C91

LAMP

Console, Inc. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

LENS, Order 83882C91

1шт.

16

107329C1

WIRE HARNESS

1шт.

17

D71346

TAIL LAMP,12V

No. 168

1шт.

18

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

429000A1

LAMP

Side Warning, Inc. 19 - 25

2шт.

19

199954A1

PACKAGE

Amber

2шт.

20

A14553

BULB

No. 57

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL, Rubber

2шт.

24

NSS

NOT SOLD SEPARAT

BODY, Order 429000A1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW

8шт.

26

1283289C1

ANGLE

Mounting

2шт.
