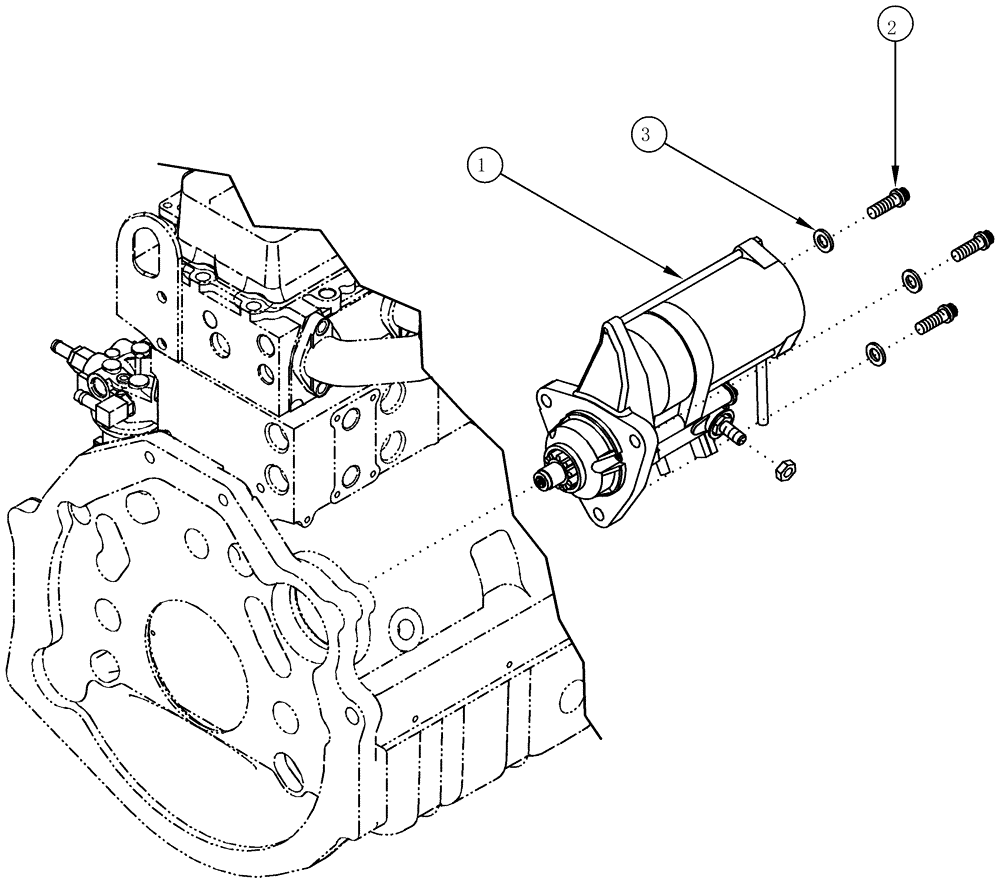

Запчасти Case IH 420 (04-18) - MOUNTING, STARTER (06) - ELECTRICAL SYSTEMS

1

87419387

STARTING MOTOR

Iskra

1шт.

See Figure 04-19

1шт.

84146320R

REMAN-STARTER,12V, 4.2kW

420 (9/06-), Reman for New P/N 87419387

1шт.

84146320C

CORE-STARTER,12V, 4.2kW

Return Number

1шт.

2

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

3шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.
