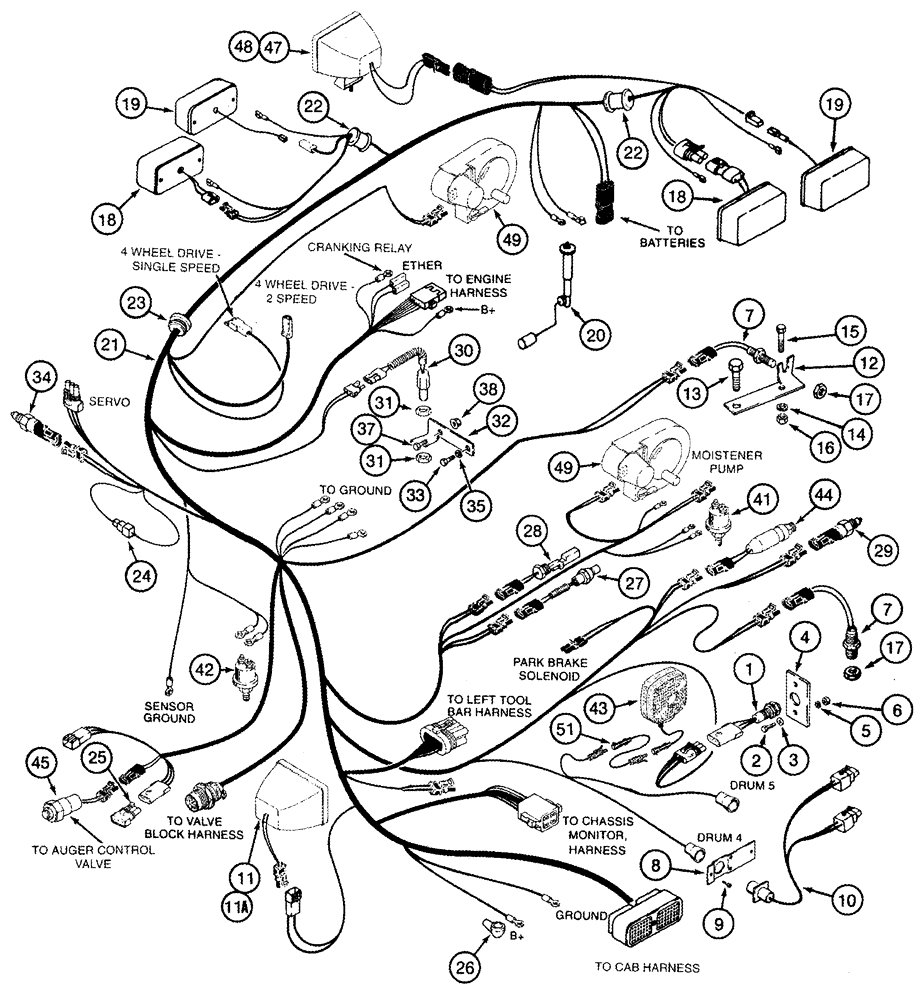

Запчасти Case IH 2555 (04-15) - HARNESS, CENTER TO REAR (06) - ELECTRICAL SYSTEMS

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

4 Row Narrow, 5 Row Narrow and 5 Row Wide

1шт.

1

295528A1

SWITCH

Drum Lift

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

4

1546433C1

SUPPORT

Proximity Switch

1шт.

5

492-11031

LOCK WASHER,5/16"

2шт.

6

425-105

NUT,5/16"-18, G5

2шт.

7

245193C2

SENSOR

MPH, Fan RPM

2шт.

8

1988723C1

SUPPORT

Monitor

1-2шт.

9

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

10 x 1/2

3-6шт.

10

1983613C2

HARNESS

Drum

3-4шт.

11

185118A1

HEADLIGHT,12V, 37.5W

Drum, Includes 11A, See Page(s) 4-79, REF 18

1шт.

11a

139119A1

BULB,#886, 12V, 50W

1шт.

12

1546124C1

SUPPORT

RPM Pickup

1шт.

13

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

5/8 x 3/4

1шт.

14

492-11062

BEARING WASHER,5/8"

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

16

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2, 8

1шт.

17

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 NF

2шт.

18

92260C1

LAMP,12V, 27W, Red

Stop-Tail, See Page(s) 4-75, REF 8

2шт.

19

130882C91

LAMP

Rear, See Page(s) 4-75, REF 1

2шт.

20

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

4 Row Narrow, 5 Row Narrow and 5 Row Wide

1шт.

21

234792A5

HARNESS

Center To Rear

1шт.

22

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

2шт.

23

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

24

113699A1

RECTIFIER

1шт.

25

A187874

MODULE

Diode, Hydraulic Oil Level

1шт.

26

399470R1

BOOT

1шт.

27

L303189

SENSOR

Hydraulic Oil Temperature

1шт.

28

122428A1

SWITCH

Hydraulic Oil Level

1шт.

29

1983575C1

SWITCH

Transmission Neutral

1шт.

30

1252494C2

TRANSMITTER

Engine RPM

1шт.

31

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

32

1546124C1

SUPPORT

RPM Pickup

1шт.

33

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

1шт.

34

197514A1

SENSOR

Neutral Start

1шт.

35

492-11062

BEARING WASHER,5/8"

1шт.

37

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

38

329-288

FLANGE NUT,Flg, 1/2"-13, G8

1шт.

41

141062A1

SENSOR

Moisture Pressure

1шт.

42

1987419C1

PROBE

Bar Lube Pressure

1шт.

43

83885C91

LAMP

Right Hand, See Page(s) 4-77, Order 192051A1, REF 43A

1шт.

43a

192051A1

SERVICE KIT

Warning Lamp, Not Illustrated, Includes 50

1шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

4 Row Narrow, 5 Row Narrow and 5 Row Wide

1шт.

44

125829A1

PRESSURE SWITCH

Parking Brake Pressure

1шт.

45

194407A2

SWITCH

Compactor/Auger Pressure

1шт.

47

185116A1

HEADLIGHT,12V, 37.5W

Rear, See Page(s) 4-79, Includes 48

1шт.

48

139119A1

BULB,#886, 12V, 50W

1шт.

49

127813A1

LAMP

Service, Includes 50

2шт.

50

P40556

BULB,12V, 10W

12V, Not Illustrated

1шт.

51

136058A1

HARNESS

Extension, Turn Signal, 5 Row Wide

1шт.
