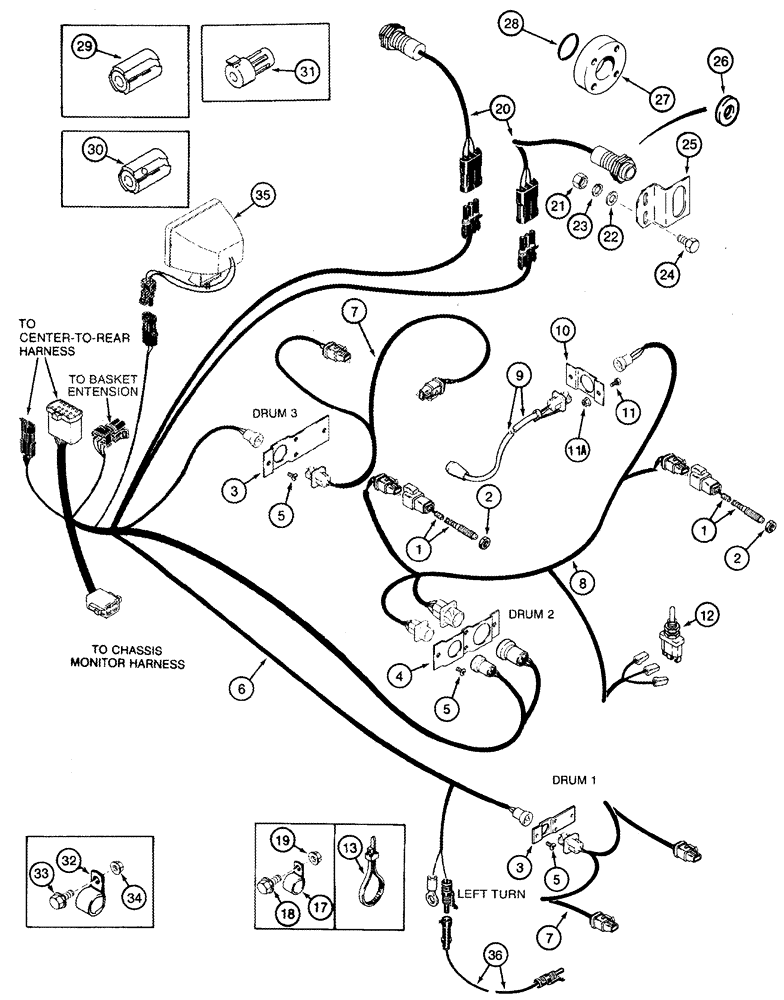

Запчасти Case IH 2555 (04-13) - HARNESS, LEFT HAND TOOL BAR (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
4 Row Wide - Prior To P.I.N. JJC0157150
1шт.
4 Row Narrow, 5 Row Narrow and 5 Row Wide
1шт.
1
1983681C1
SENSOR
Rotor Speed
2шт.
2
84116C1
NUT
2шт.
3
1988723C1
SUPPORT
Harness Mounting, One Connector
4шт.
4
1988724C1
SUPPORT
Harness Mounting, Two Connector
1шт.
5
281-1458
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
5шт.
6
234249A5
HARNESS
Left Hand Tool Bar
1шт.
7
1983613C2
HARNESS
Drum
4шт.
8
1983614C3
HARNESS
Drum with Tether
1шт.
9
1983416C2
SWITCH
Remote Tether
1шт.
10
91795C1
SUPPORT
Harness Mounting, One Connector
1шт.
11
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
2шт.
11a
231-51409
SERRATED NUT,Flg, USR, #10-24
2шт.
12
1983686C1
SWITCH
Drum Spread
1шт.
13
22-824
CABLE TIE,3/16" x 7 1/4"
CABLE STRAP
2шт.
17
515-23254
CLAMP,1", Insul, 3/8" Bolt
2шт.
18
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
2шт.
19
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
4 Row Wide - Prior To P.I.N. JJC0157150
1шт.
4 Row Narrow, 5 Row Narrow and 5 Row Wide
1шт.
111669A1
PACKAGE
Consists Of 20 - 28
1шт.
20
295528A1
SWITCH
Drum Lift, Drum Tilt
2шт.
21
425-105
NUT,5/16"-18, G5
4шт.
22
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
4шт.
24
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
25
1546432C1
SUPPORT
Switch Mounting
2шт.
26
495-81202
WASHER,1 9/32" x 1 3/4" x .060"
1-9/32 x 1-3/4 x 1/16
4шт.
27
112291A1
COVER
Switch Port, If Equipped
2шт.
28
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
If Equipped
2шт.
29
1987557C1
CONNECTOR, ELEC
CONNECTOR , Monitor Conversion
1шт.
30
106212A1
CONNECTOR, ELEC
CONNECTOR , Monitor Conversion
1шт.
31
106209A1
CONNECTOR, ELEC
CONNECTOR , Dust
2шт.
32
515-25317
CLAMP,1 1/4", Insul, 1/2" Bolt
Rubber Cushioned
1шт.
33
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
1шт.
34
231-5146
FLANGE NUT,3/8"-16
1шт.
36
136058A1
HARNESS
Extension, Turn Signal, 5 Row Wide
1шт.
Выбрано товаров: 39
