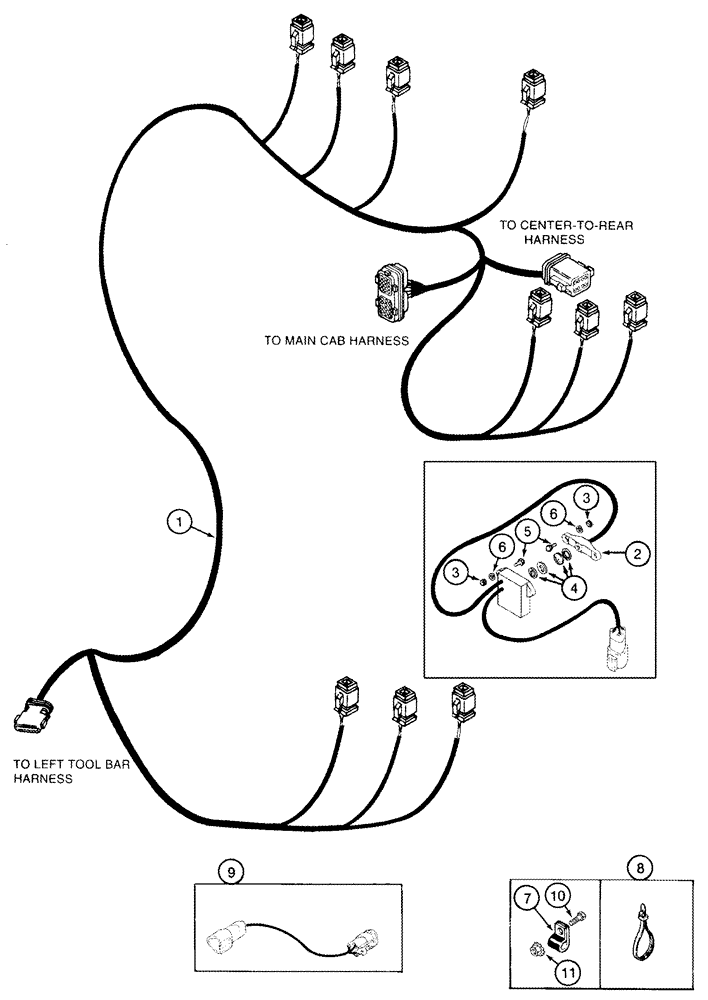

Запчасти Case IH 2555 (04-12) - MONITOR, CHASSIS (06) - ELECTRICAL SYSTEMS

1

139653A2

HARNESS

Chassis Monitor

1шт.

2

1983618C2

SENSOR

Cotton Flow

8-10шт.

3

425-104

NUT,1/4"-20, Cl 5

1шт.

4

83901C1

PACKAGE

Lens

16-20шт.

5

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

Slotted Truss Head

1шт.

6

492-11025

LOCK WASHER,1/4"

1шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

7шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

9

136057A1

HARNESS

Extension, Cotton Flow Sensor, 5 Row Wide, Brazil 5 Row Narrow To 5 Row Wide conversion

4шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.
