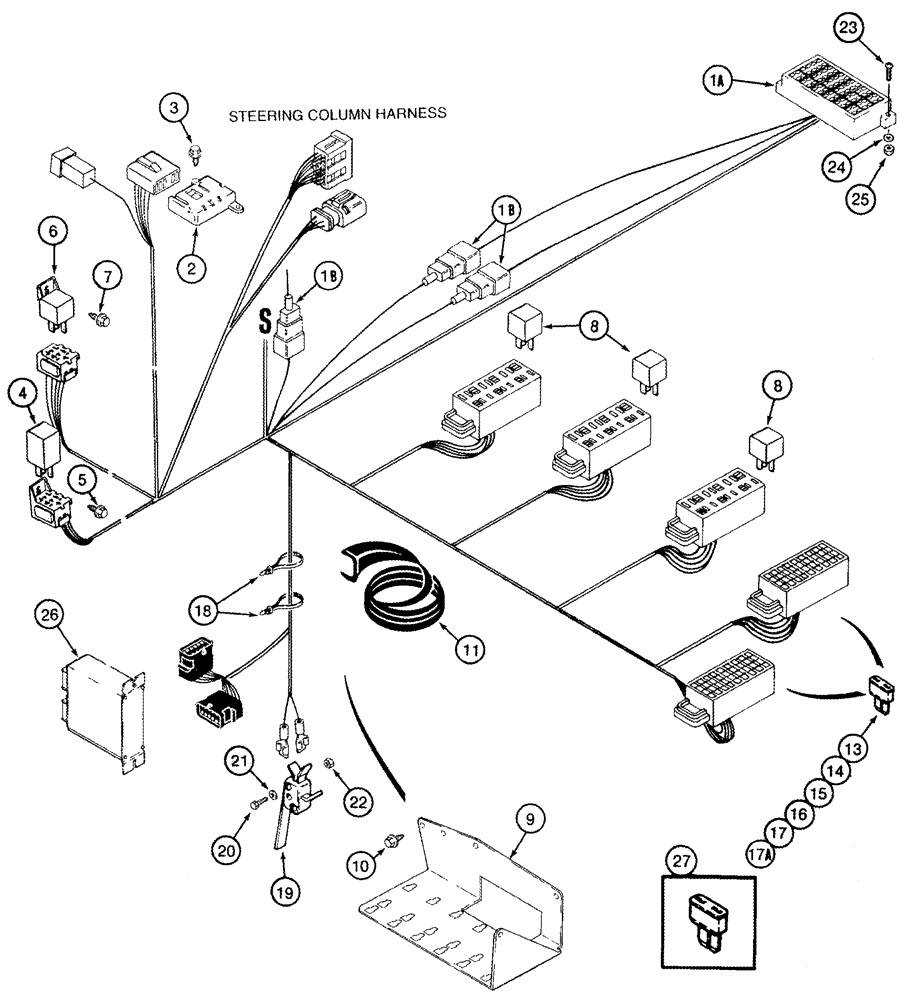

Запчасти Case IH 2555 (04-09) - HARNESS, CAB PEDESTAL, RELAY AND FUSE BLOCK -JJC0157149 (06) - ELECTRICAL SYSTEMS

1

231633A3

HARNESS

Cab

1шт.

1a

122845A1

JUNCTION BLOCK

Feedback

1шт.

1b

113699A1

RECTIFIER

3шт.

2

284421A1

CONTROL UNIT

Low Coolant, Replaces A162294

1шт.

3

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

4

92389C2

FLASHER UNIT

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

6

1987452C1

RELAY

1шт.

7

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

1шт.

8

105849A1

RELAY

Continuous Duty

17шт.

9

123116A1

PANEL

1шт.

10

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

3шт.

11

70-5848T1

SEAL

Cut From F64277X

2шт.

12

226302A1

DECAL

Lower Fuse Block, Not Illustrated, See Page(s) 9F-73, 11

1шт.

13

121850A1

FUSE,3A, Mini, Violet

1шт.

14

121410A1

FUSE,5A, Mini, Tan

5шт.

15

121412A1

FUSE,10A, Mini, Red

10шт.

16

121413A1

FUSE,15A, Mini, Blue

4шт.

17

121414A1

FUSE,20A, Mini, Yellow

2шт.

17a

121416A1

FUSE,30A, Mini, Green

2шт.

18

702093C1

CABLE TIE

CABLE STRAP

2шт.

19

60-6515T1

SWITCH

High Range Lockout

1шт.

20

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

21

495-31012

WASHER,#4

2шт.

22

225-14104

NUT,#4-40

2шт.

23

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

24

495-31012

WASHER,#4

2шт.

25

231-14106

NUT,#6-32, GB

2шт.

26

183969A2

CASE

Moistener, RPM Control

1шт.

27

222699A1

FUSE KIT

Includes 3, 5, 7-1/2, 10, 15, 20, 25, 30 amp

1шт.

Note: See pages 4-23 and 4-25 for continuation of the cab harness at call out letter S.

1шт.

Nota: Véase la continuación del mazo de cables de la cabina en la letra S de las páginas 4-23 y 4-25.

1шт.

Nota: Veja as páginas 4-23 e 4-25 para a continuação da fiação da cabine, indicada pela letra S.

1шт.
