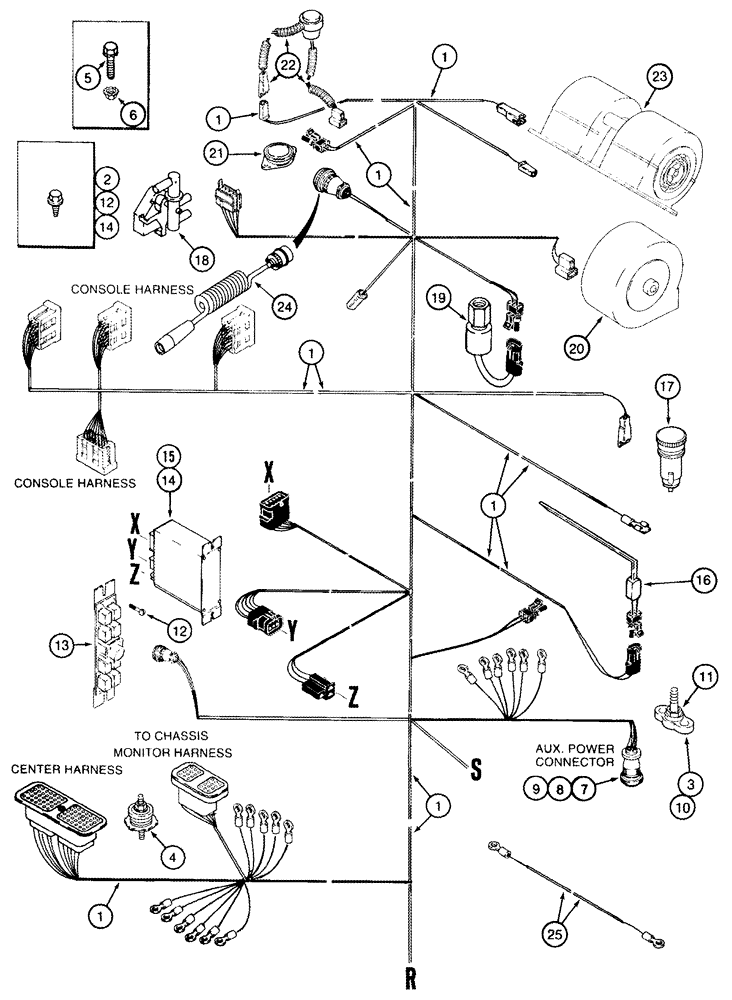

Запчасти Case IH 2555 (04-08) - HARNESS, CAB LOWER REAR (06) - ELECTRICAL SYSTEMS

1

231633A3

HARNESS

Cab, - JJC0157149

1шт.

1

291406A2

HARNESS

Cab, JJC0157150 -

1шт.

2

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

8шт.

3

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

Not Illustrated

2шт.

4

190158A1

BLOCK

Junction, Unswitched

1шт.

5

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

Ground

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

4шт.

8

231-14106

NUT,#6-32, GB

4шт.

9

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

10

20-1451T1

BLOCK

Junction, Switched

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

12a

495-31022

WASHER,#10

2шт.

13

1983419C3

CONTROL UNIT

Operator Presence

1шт.

14

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

15

239951A2

CASE

Air Conditioning Control, Replaces 141178A4

1шт.

16

184720A2

SENSOR

Temperature, Evaporator

1шт.

17

1964773C1

CIGAR LIGHTER

Includes 17A

1шт.

17a

A177447

LIGHTER, CIGARETTE

1шт.

18

141336A2

CONTROL VALVE

Heater

1шт.

19

122579A1

SWITCH, A/C LOW PRES

Low, Air Conditioning

1шт.

20

175435A3

BLOWER

Pressurizer

1шт.

21

242306A2

SWITCH

Seat

1шт.

22

180601A1

WIRE HARNESS

Seat, Operator Presence

1шт.

23

1977564C2

BLOWER

Cab

1шт.

23

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

23

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

24

187678A1

SWITCH

Remote Tether, Basket Unload

1шт.

25

128739A1

CABLE

Ground

1шт.

*

Note: See pages 4-15, 4-17, 4-19 and 4-21 for continuation of cab harness at call out letter R. See pages 4-27 and 4-29 for continuation of cab harness at call out letter S.

1шт.

*

Nota: Véase la continuación del mazo de cables de la cabina en la letra R de las páginas 4-15, 4-17, 4-19 y 4-21. Véase la continuación del mazo de cables de la cabina en la letra S de las páginas 4-27 y 4-29.

1шт.

*

Nota: Veja as páginas 4-15, 4-17, 4-19 e 4-21 para a continuação da fiação da cabine, indicada pela letra R. Veja as páginas 4-27 e 4-29 para a continuação da fiação da cabine, indicada pela letra S.

1шт.
