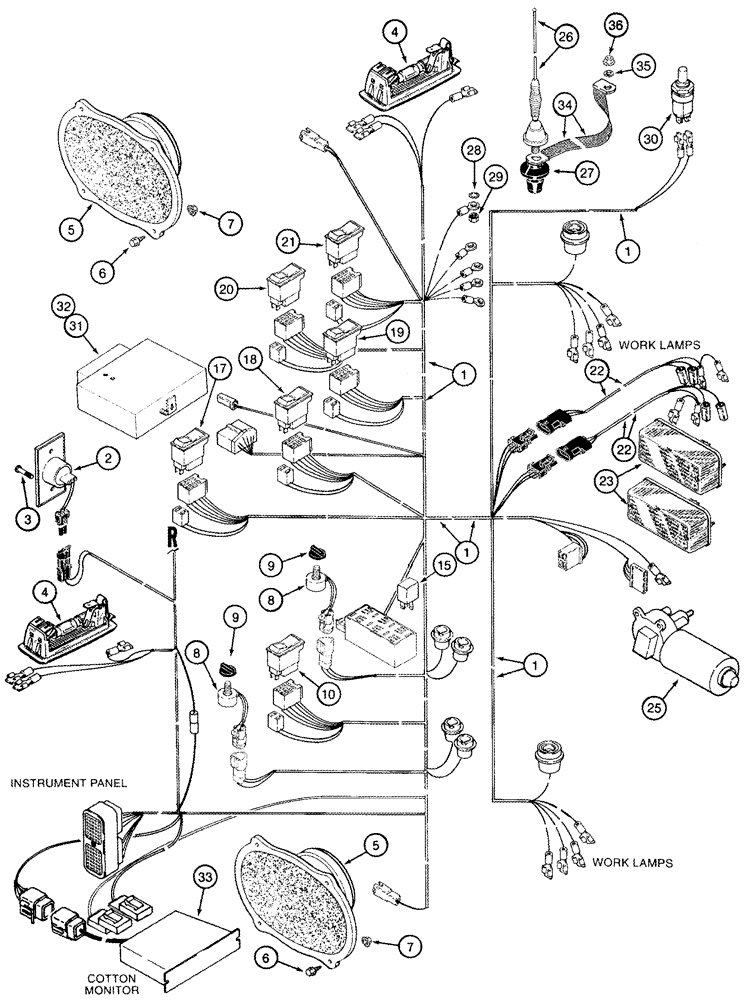

Запчасти Case IH 2555 (04-07) - HARNESS, CAB OVERHEAD JJC0157150- (06) - ELECTRICAL SYSTEMS

1

291406A2

HARNESS

Cab

1шт.

2

83882C91

LAMP

Console, See Figure 04-28

1шт.

3

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

4

1983391C1

LAMP,12V, 10W

Dome, See Figure 04-28, REF 13

2шт.

5

182721A2

SPEAKER

1шт.

6

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

8шт.

7

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

2шт.

9

1977521C1

BUTTON

2шт.

10

234997A1

SWITCH

Air Conditioning

1шт.

11

D71346

TAIL LAMP,12V

Not Illustrated

4шт.

12

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

Not Illustrated, If equipped

1шт.

12

121412A1

FUSE,10A, Mini, Red

Not Illustrated, If equipped

1шт.

13

121413A1

FUSE,15A, Mini, Blue

Not Illustrated, If Equipped

3шт.

14

121416A1

FUSE,30A, Mini, Green

Not Illustrated, If equipped

2шт.

15

105849A1

RELAY

4шт.

16

REF

INSTRUCTION

Decal, Not Illustrated, See Page(s) 9F-75, REF 10

1шт.

17

141488A1

WINDSHIELD WIPER SWI

Wiper Control, Standard

1шт.

18

144160A1

SWITCH

Basket, Drum Lamp

1шт.

19

124095A1

LIGHT SWITCH

Lamp

1шт.

20

279263A1

FLASHER SWITCH

Hazard - Towing

1шт.

21

141430A1

SWITCH

Emergency Unload

1шт.

22

291407A2

HARNESS

Warning Lamp, Work Lamp

2шт.

23

130882C91

LAMP

Warning, See Page(s) 4-75

2шт.

25

137608A1

WIPER MOTOR

MOTOR, WIPER , Windshield Wiper Front, See Page(s) 4-87

1шт.

26

97080C1

ANTENNA

Radio

1шт.

27

R54547

GROMMET

1шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

1983341C1

SWITCH

Door Jam

1шт.

31

141950A2

RADIO

AM-FM Stereo, Order From Ship Direct ZAE1000

1шт.

32

141951A2

RADIO

AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct ZAE3000

1шт.

33

128361A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT , Cotton Picker

1шт.

34

278032A1

GROUND STRAP

Ground Strap

1шт.

35

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.
