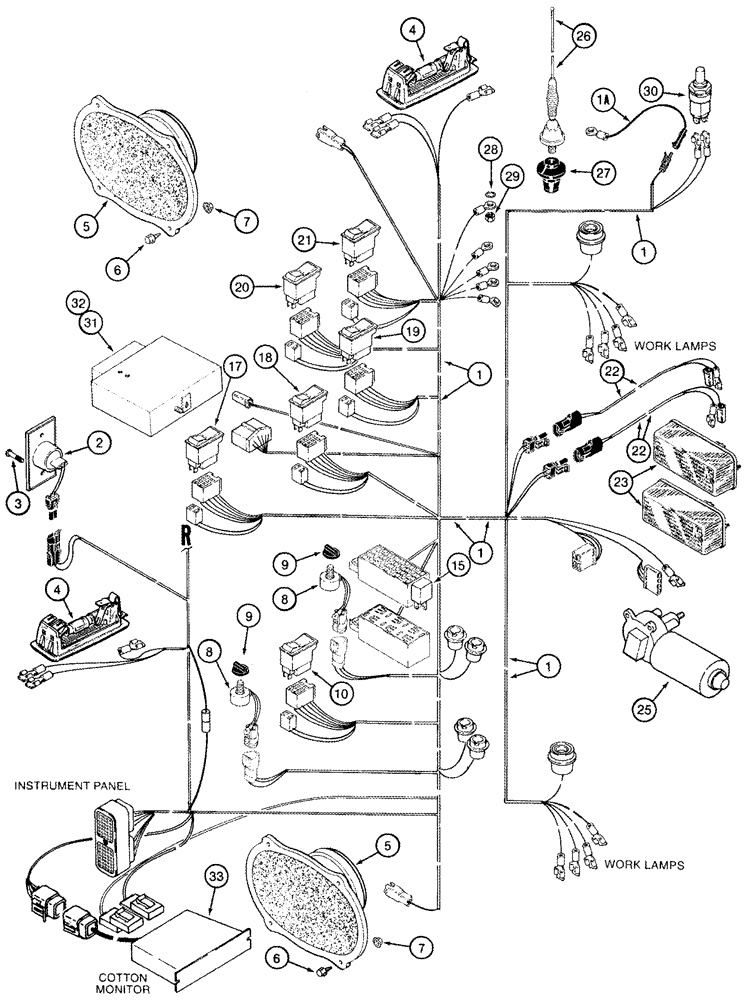

Запчасти Case IH 2555 (04-06) - HARNESS, CAB OVERHEAD -JJC0157149 (06) - ELECTRICAL SYSTEMS

1

231633A3

HARNESS

Cab, Includes 1A

1шт.

1a

196133A1

HARNESS

1шт.

2

83882C91

LAMP

Console, See Figure 04-28

1шт.

3

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

4

1983391C1

LAMP,12V, 10W

Dome, See Figure 04-28, REF 13

2шт.

5

182721A2

SPEAKER

1шт.

6

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

8шт.

7

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

2шт.

9

1977521C1

BUTTON

2шт.

10

234997A1

SWITCH

Air Conditioning

1шт.

11

D71346

TAIL LAMP,12V

Not Illustrated

4шт.

12

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

Not Illustrated, If equipped

1шт.

12

121412A1

FUSE,10A, Mini, Red

Not Illustrated, If equipped

1шт.

13

139719A1

CIRCUIT BREAKER,15 Amp, Mini

Not Illustrated, If equipped

3шт.

13

121413A1

FUSE,15A, Mini, Blue

Not Illustrated, If Equipped

3шт.

14

139721A1

CIRCUIT-BREAKER,25 Amp, Mini

Not Illustrated, If equipped

2шт.

14

121416A1

FUSE,30A, Mini, Green

Not Illustrated, If equipped

2шт.

15

105849A1

RELAY

4шт.

16

141230A2

DECAL

Not Illustrated, See Page(s) 9F-73, REF 10

1шт.

17

141488A1

WINDSHIELD WIPER SWI

Wiper Control, Standard

1шт.

18

144160A1

SWITCH

Basket, Drum Lamp

1шт.

19

124095A1

LIGHT SWITCH

Lamp

1шт.

20

124094A1

SWITCH

Hazard Lamp

1шт.

21

141430A1

SWITCH

Emergency Unload

1шт.

22

143062A1

WIRE HARNESS

Warning Lamp

2шт.

23

130882C91

LAMP

Warning, See Page(s) 4-75

2шт.

25

137608A1

WIPER MOTOR

MOTOR, WIPER , Windshield Wiper Front, See Page(s) 4-87

1шт.

26

97080C1

ANTENNA

Radio

1шт.

27

R54547

GROMMET

1шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

1983341C1

SWITCH

Door Jam

1шт.

31

141950A2

RADIO

AM-FM Stereo, Order From Ship Direct ZAE1000

1шт.

32

141951A2

RADIO

AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct ZAE3000

1шт.

33

128361A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT , Cotton Picker

1шт.

Note: See pages 4-23 - 4-25 for continuation of the cab harness at call out letter R in the illustration. See page 4-53 for the instrument panel, and 4-79, 4-81 for the work lamps.

1шт.

Nota: Véase las páginas 4-23 - 4-25 para la continuación del mazo de cables de la cabina en la letra R de la ilustración. Véase la página 4-53 para información acerca del panel de instrumentos, y las páginas 4-79, 4-81 para información acerca de las de t

1шт.

Nota: Veja as páginas 4-23 a 4-25 para a continuação da fiação da cabine, indicada pela letra R da ilustração. Veja as páginas 4-53 para o painel de instrumentos e 4-79 e 4-81 para as lanternas de trabalho.

1шт.
