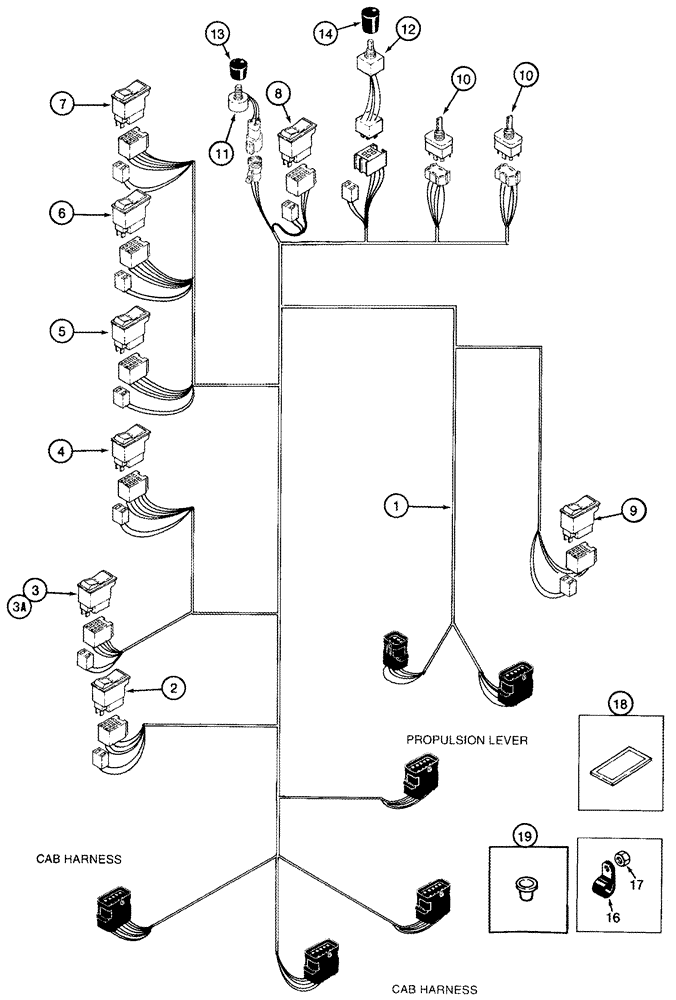

Запчасти Case IH 2555 (04-04) - HARNESS, CONSOLE -JJC0157149 (06) - ELECTRICAL SYSTEMS

1

231634A3

HARNESS

Console

1шт.

2

124098A1

SWITCH

Parking Brake

1шт.

3

124105A1

SWITCH

Power Guide Axle, 4WD, One Speed, If Used

1шт.

3a

198506A1

SWITCH

Power Guide Axle, 4WD, Two Speed, If Used

1шт.

4

124102A1

SWITCH

Drum Lube

1шт.

5

124104A1

FAN SWITCH

1шт.

6

124097A1

SWITCH

Hydraulic Lockout

1шт.

7

144159A1

SWITCH

Basket Lock, Drum Lock

1шт.

8

184865A1

SWITCH

Moistener

1шт.

9

187104A1

SWITCH

OPS Service

1шт.

10

121541C2

SWITCH

Toggle, Drum Lower, Left Hand, Right Hand

2шт.

11

114551A1

POTENTIOMETER,2500 Ohm, 500V

1шт.

12

233945A2

SWITCH

Compactor Auger

1шт.

13

118780A1

KNOB

Potentiometer

1шт.

14

224485A4

BUTTON

Compactor Auger

1шт.

16

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

18

245918C1

LENS

Rectangular, Blanking rocker switch

1шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

20

3141107R1

BULB,W5/1.2, 12V, 1.2W

Not Illustrated

1шт.

21

134608A1

LAMP SOCKET

Not Illustrated

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
