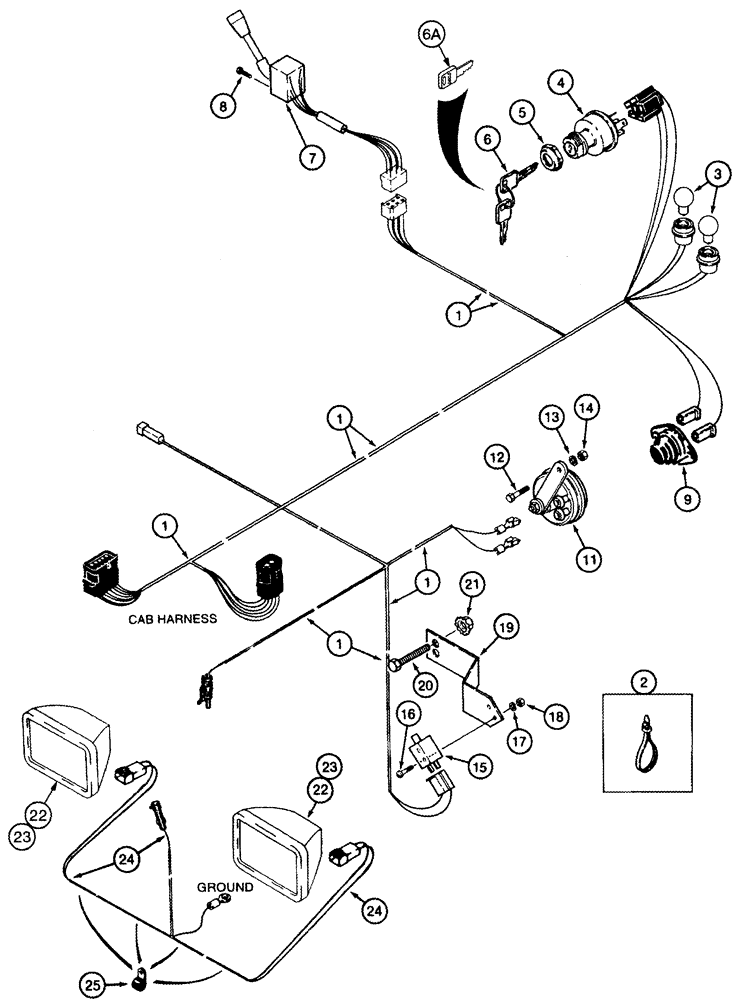

Запчасти Case IH 2555 (04-02) - HARNESS STEERING CONSOLE AND PLATFORM -JJC0157149 (06) - ELECTRICAL SYSTEMS

1

199075A2

HARNESS

Steering Console

1шт.

2

702093C1

CABLE TIE

CABLE STRAP

1шт.

3

D71346

TAIL LAMP,12V

No. 168

2шт.

4

D134737

IGNITION SWITCH

Includes 5, 6, Order 282775A1

1шт.

4

282775A1

IGNITION SWITCH

Includes 5, 6A

1шт.

5

A77314

NUT

1шт.

6

A77313

SET OF 2 KEYS

Metal Without Padding; D134737 Switch

1шт.

6a

1964831C2

IGNITION KEY

Padded; 282775A1 Switch

1шт.

7

1500137C2

FLASHER SWITCH

Horn

1шт.

8

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

M4 x 8

2шт.

9

D67872

SWITCH

Ether Injection

1шт.

11

3057542R91

HORN

Warning

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

13

892-11006

LOCK WASHER,M6

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

1шт.

15

127286A1

SWITCH

Emergency Brake

1шт.

16

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

17

892-11004

LOCK WASHER,M4

2шт.

18

824-1404

NUT,M4, Cl 5

2шт.

19

180517A1

SUPPORT

1шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

21

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

22

185117A1

HEADLIGHT,12V, 37.5W

Includes 23

2шт.

23

139120A1

BULB

Type C-6, No. 894

1шт.

24

184848A2

WIRE HARNESS

Auxillary Lamp

1шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.
