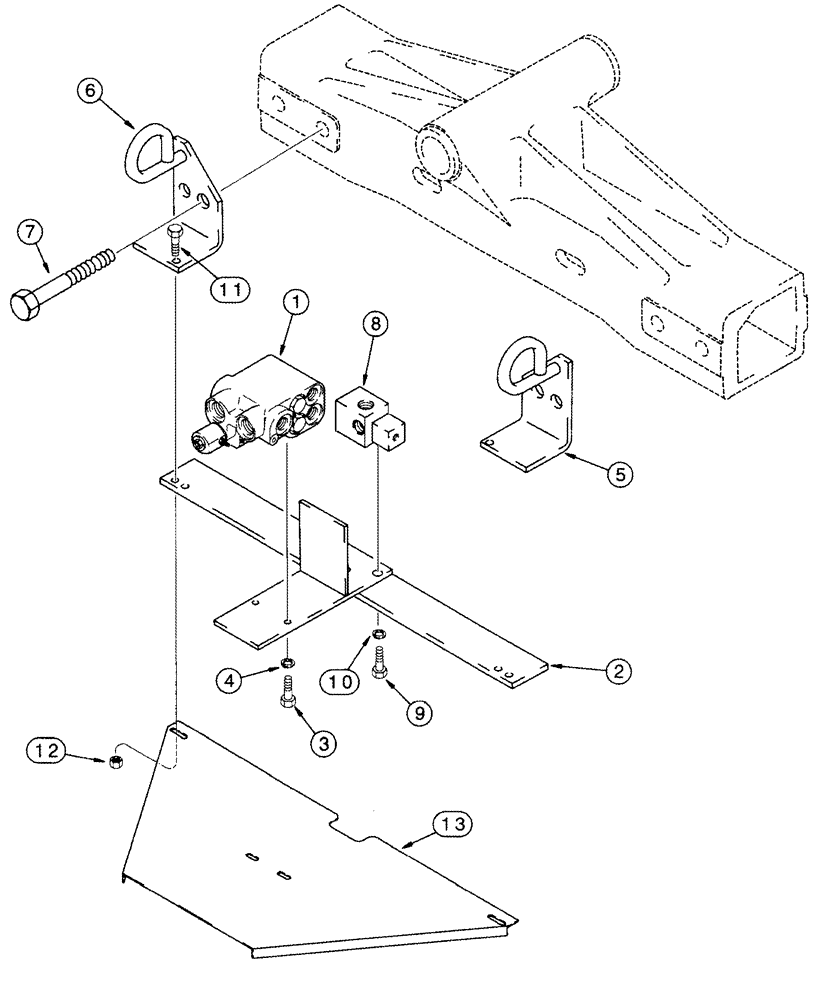

Запчасти Case IH 2555 (05-14) - SELECTOR VALVE MOUNTING (04) - STEERING

1

1347194C1

VALVE

Selector, See Page(s) 5-41, 5-43

1шт.

2

238940A1

SUPPORT

Valve Mounting

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

1979430C1

SUPPORT

Hose Guide, Right Hand

1шт.

6

1979431C1

SUPPORT

Hose Guide, Left Hand

1шт.

7

828-24220

BOLT,Hex, M24 x 3 x 220mm, Cl 10.9

2шт.

8

238958A1

VALVE

Displacement, See Page(s) 5-31B

1шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

12

231-4146

NUT,3/8"-16, GB

2шт.

13

239379A1

SHIELD

1шт.
