Запчасти Case IH 2555 (05-11) - WHEEL MOTOR FLUSH SYSTEM (04) - STEERING

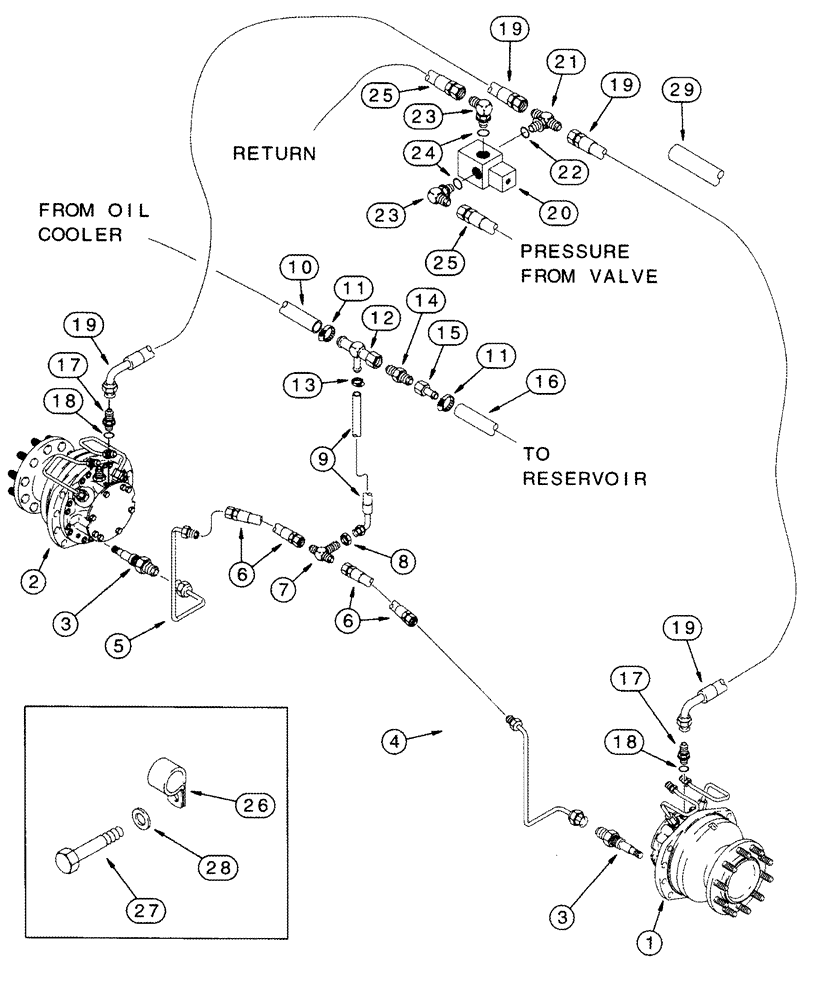

Схема запчастей Case IH 2555 - (05-11) - WHEEL MOTOR FLUSH SYSTEM (04) - STEERING
25
15
22
18
4
19
14
9
21
3
6
11
6
26
5
19
2
28
23
7
1
27
18
10
19
16
13
20
19
24
17
23
25
17
12
11
8
3
29

Артикул

Название

Примечание

Количество

1

238767A1

MOTOR, HYDRAULIC

Wheel Drive, Right Hand, See Page(s) 5-33, See Note

1шт.

2

238768A1

MOTOR, HYDRAULIC

Wheel Drive, Left Hand, See Page(s) 5-33, See Note

1шт.

3

121434A1

ADAPTER

Special

2шт.

4

238931A1

PIPE

Motor Flush, Right Hand

1шт.

5

238932A1

PIPE

Motor Flush, Left Hand

1шт.

6

247320A1

HOSE,9.53mm ID x 1244.6mm L

Motor Flush

2шт.

7

218-805

TEE,3/4"-16, 37 Degree, Blkhd

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

9

237849A1

HOSE

1шт.

10

1541798C1

HOSE

Cut From 364361C1

1шт.

11

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

4шт.

12

1979655C1

TEE

Special

1шт.

13

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

14

86892C2

VALVE

1шт.

15

238519A1

FITTING

Special

1шт.

16

1979822C1

LARGE HOSE

HOSE,LARGE , Cut From 364361C1

1шт.

17

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 18

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

238958A1

VALVE

Displacement, Includes 21 - 24

1шт.

21

218-5180

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes 22

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes 24

2шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

25

238944A1

HOSE

2шт.

26

238937A1

CLAMP

2шт.

27

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

28

1324470C1

WASHER

41/64 x 1 x 3/64

2шт.

29

238952A1

PLASTIC-RUBBER TUBE

2шт.

Выбрано товаров: 28
