Запчасти Case IH 2555 (05-09) - CYLINDER, STEERING (04) - STEERING

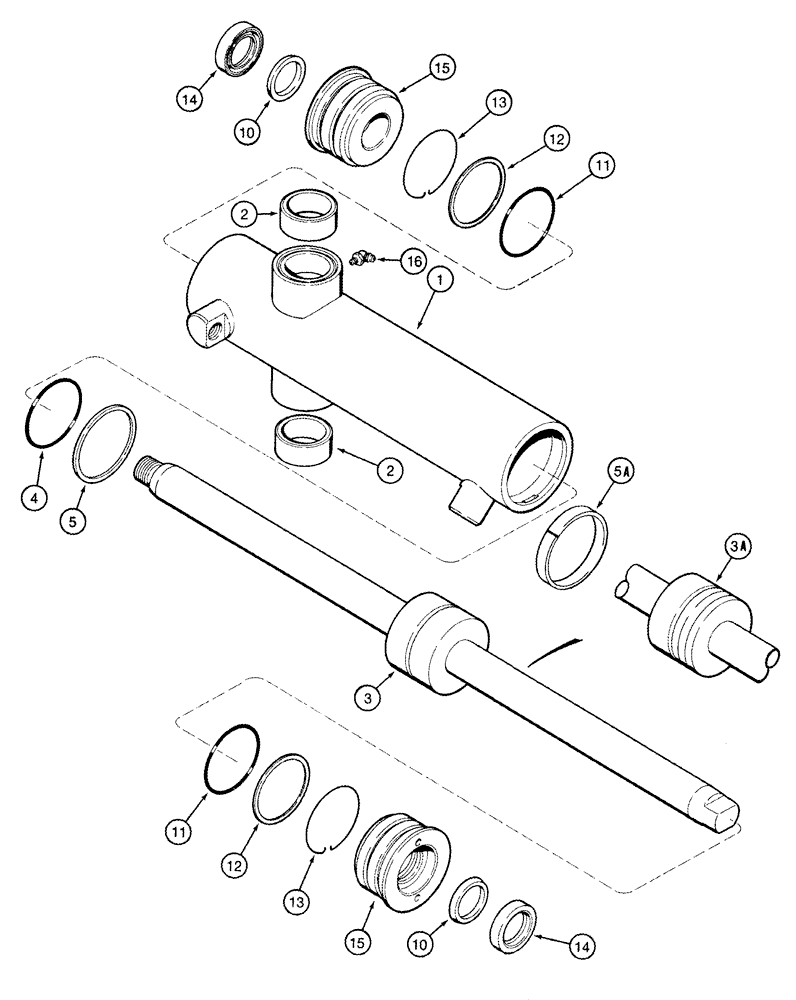

Схема запчастей Case IH 2555 - (05-09) - CYLINDER, STEERING (04) - STEERING
1
13
3
10
11
15
12
12
16
2
10
14
3a
4
15
5
14
5a
13
11
2

Артикул

Название

Примечание

Количество

93194C8

STEERING CYLINDER

Consists Of 1 - 15

1шт.

93194C9R

REMAN-HYD CYLINDER

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

Includes 2

1шт.

2

1255304C1

BUSHING

2шт.

3

1255306C4

PISTON ROD

Single Groove, If Equipped, Order 1255306C5, 80448C2

1шт.

3a

1255306C5

PISTON ROD

Double Groove, If Equipped

1шт.

80448C2

SEAL KIT

Consists Of 4 - 14

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

Piston

1шт.

5a

111829A1

PISTON RING

Use With 1255306C4

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

Piston Rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

12

1255311C1

WASHER

2шт.

13

1255312C1

RETAINING WIRE

Retaining, Cut From 140600C1

2шт.

14

D95141

WIPER SEAL

2шт.

15

1255310C1

HEAD (CYLINDER)

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

2шт.

Выбрано товаров: 18
