Запчасти Case IH 2555 (05-08) - WHEELS, REAR (04) - STEERING

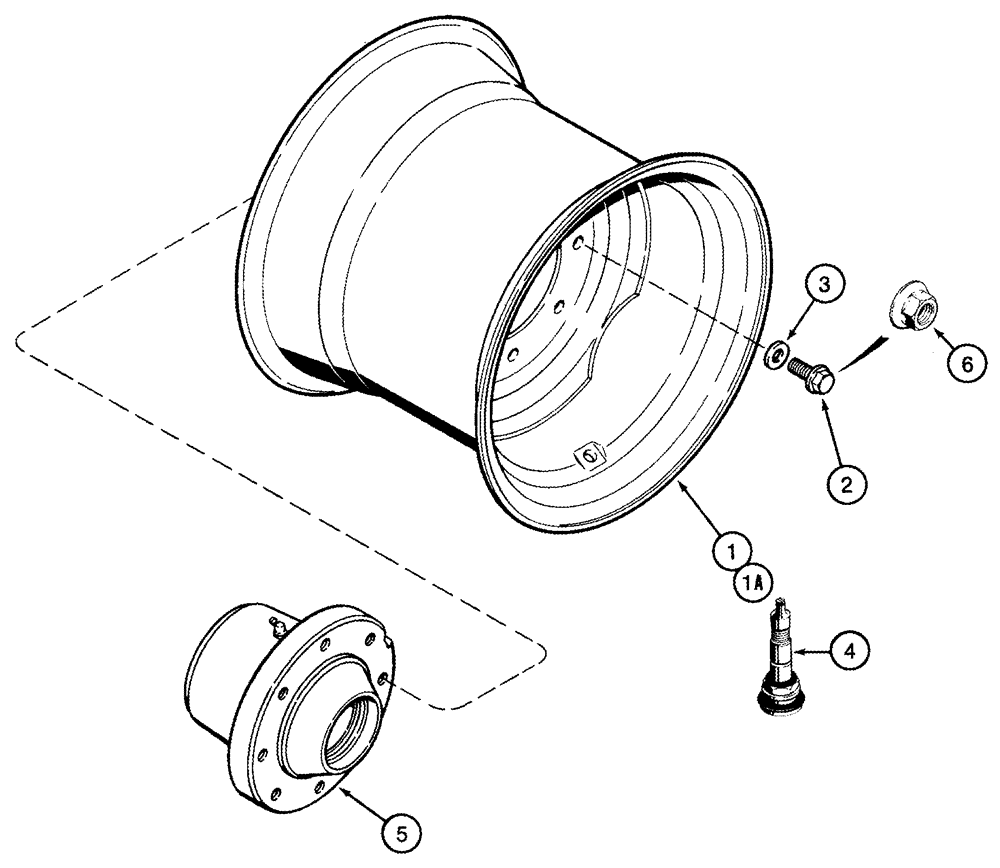

Схема запчастей Case IH 2555 - (05-08) - WHEELS, REAR (04) - STEERING
6
3
1
4
5
1a
2

Артикул

Название

Примечание

Количество

1

192201A2

WHEEL

12 x 24 in, Rear Steering, Eight Hole Pattern, Standard Axle

2шт.

1a

232777A2

RIM

WHEEL , 12 x 24 in, Rear Steering, Ten Hole Pattern, Power Guide Axle, Not Illustrated

2шт.

1a

360213A1

WHEEL ASSY.

26 x 15 in, Rear Steering, Ten Hole Pattern, Power Guide Axle, Not Illustrated

2шт.

2

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

9/16 NF x 1-1/2, Use With 192201A2, If Used

16шт.

2

460-924

BOLT,Hex, 9/16" - 18 x 1 1/2", Gr 8

9/16 x 1-1/2, If Used

16шт.

3

496-21059

WASHER,0.59" ID x 1.19" OD x 0.13" Thk

9/16 x 1-3/16 x 5/32 in, Use With 192201A2

16шт.

4

179482C1

VALVE STEM

7/16 in dia

2шт.

4a

359846A1

PLUG

Not Illustrated

2шт.

5

1259528C1

HUB

Rear Wheel, See Page(s) 5-19

2шт.

6

1541701C1

FLANGE NUT

Use With 232777A2, 360213A1

20шт.

Выбрано товаров: 10
