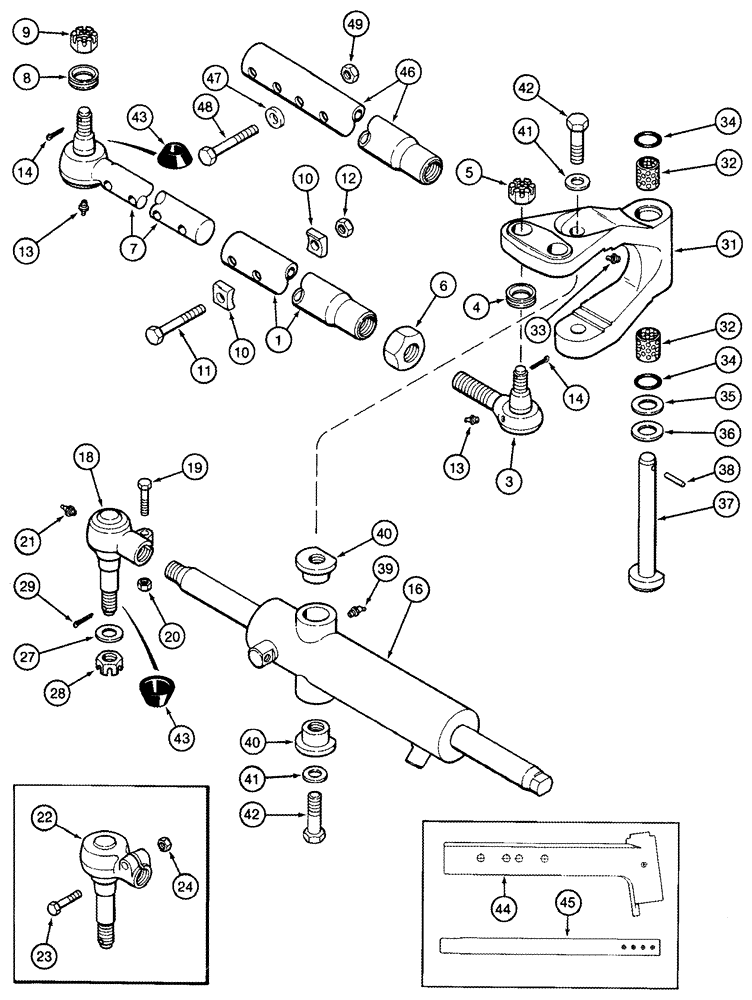

Запчасти Case IH 2555 (05-07) - STEERING CYLINDER AND TIE ROD (04) - STEERING

*

1270788C1

DRAG LINK

Consists Of 1 - 13, See Below

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

Standard Axle

1шт.

123321A1

TUBE,41.275 mm OD, 808 mm Length

Tie Rod, 5 Row Wide

1шт.

3

1280658C1

BALL JOINT

Inner Tie Rod, Includes 4, 5

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

1шт.

5

1280660C1

SLOTTED NUT

M20

1шт.

6

1280661C1

NUT

1-1/8"

1шт.

7

1280662C1

BALL JOINT

Outer Tie Rod, Includes 8, 9

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

1шт.

9

1280660C1

SLOTTED NUT

M20

1шт.

10

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

Standard Axle

4шт.

11

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

Standard Axle

2шт.

12

232-4616

LOCK NUT,3/8"-24, GC

Standard Axle

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

14

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

16

93194C8

STEERING CYLINDER

67 ID x 246 mm strk, Steering, See Page(s) 5-27

1шт.

16

93194C9R

REMAN-HYD CYLINDER

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), 67 ID x 246 mm strk, Steering, Reman For New PN 93194C8

1шт.

16

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1280566C2

BALL JOINT

Consists Of 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

Ball Joint, Includes 19 - 21, If Equipped

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

131-463

NUT,3/8"-16

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

NSS

NOT SOLD SEPARAT

Ball Joint, Includes 23, 24, If Equipped

1шт.

23

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

24

232-4117

LOCK NUT,7/16"-14, GC

1шт.

*

Note: Reference numbers 1, 10, 11 and 12 used with standard axle. Units with Power Guide Axle use reference numbers 46 - 49.

1шт.

*

Nota: Los números de referencia 1, 10, 11 y 12 se usan con eje estándar. Las unidades con eje guía de fuerza usa los números de referencia 46 - 49.

1шт.

*

Nota: Os números de referência 1, 10, 11 e 12 são usados com eixo standard. As unidades com Eixo Guia de Potência usam números de referência 46 - 49.

1шт.

27

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

28

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

1шт.

29

432-1028

COTTER PIN,5/32" x 1 3/4"

1шт.

31

1259579C5

ARM

Center, Includes 32

1шт.

32

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

2шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

34

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

35

71421C1

WASHER

1шт.

36

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

1шт.

37

1334694C1

PIN,50.8mm OD x 210.05mm L

1шт.

38

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

1шт.

39

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

40

1259582C3

FITTING

Cylinder

2шт.

41

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

2шт.

42

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

Use Loctite No. 242

2шт.

345-49

SEALANT

Not Illustrated

1шт.

43

250586C1

SEAL

2шт.

44

110493A1

EXTENSION

Axle, Skip Row

1шт.

45

110628A2

TUBE

Tie Rod, Skip Row, Replaces 110628A1

1шт.

46

110628A2

TUBE

Tie Rod, Power Guide Axle, Replaces 110628A1

2шт.

47

238939A1

SPACER

Power Guide Axle

4шт.

48

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Power Guide Axle

4шт.

49

231-4136

LOCK NUT,3/8"-16, GB

Power Guide Axle

4шт.

*

Note: Reference numbers 1, 10, 11 and 12 used with standard axle. Units with Power Guide Axle use reference numbers 46 - 49.

1шт.

*

Nota: Los números de referencia 1, 10, 11 y 12 se usan con eje estándar. Las unidades con eje guía de fuerza usa los números de referencia 46 - 49.

1шт.

*

Nota: Os números de referência 1, 10, 11 e 12 são usados com eixo standard. As unidades com Eixo Guia de Potência usam números de referência 46 - 49.

1шт.
