Запчасти Case IH 2555 (05-05) - AXLE, REAR SUPPORT (04) - STEERING

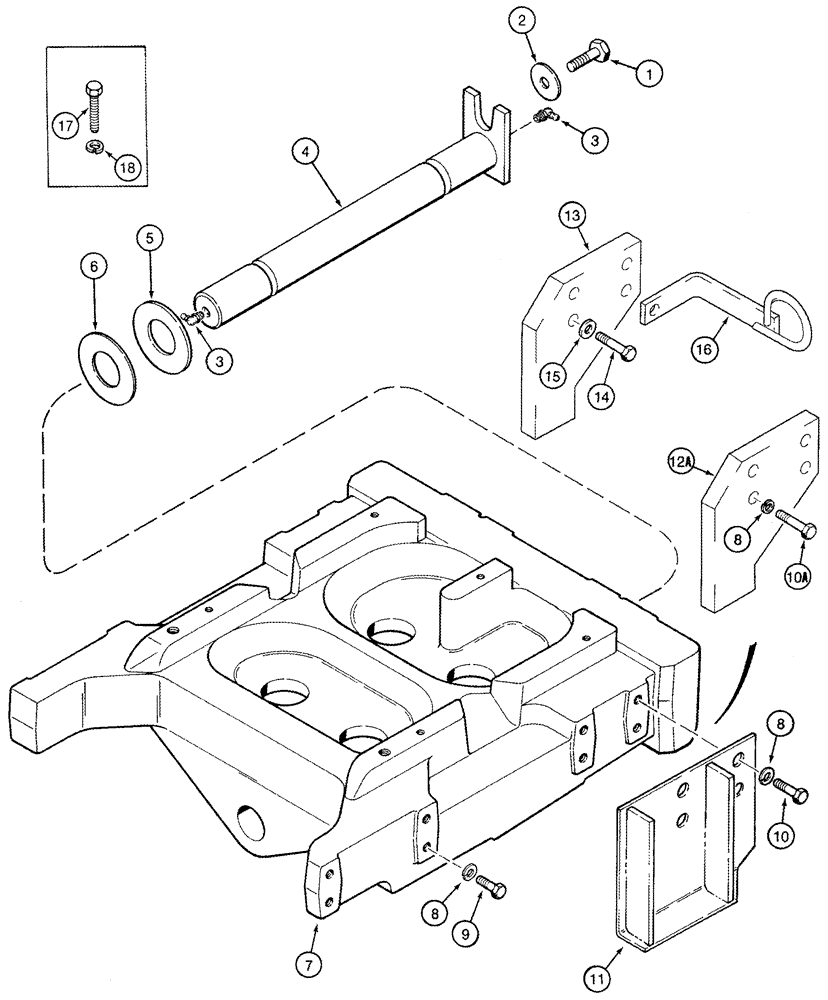

Схема запчастей Case IH 2555 - (05-05) - AXLE, REAR SUPPORT (04) - STEERING
14
1
3
18
4
15
16
6
13
8
8
9
11
17
12a
3
7
10
5
2
8
10a

Артикул

Название

Примечание

Количество

1

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

2

101936C2

WASHER

1шт.

3

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

1348230C1

PIVOT PIN,49.95mm OD x 530mm L

1шт.

5

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

2шт.

6

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

1шт.

7

137316A3

SUPPORT ASSY.

Replaces A185918

1шт.

8

892-16016

LOCK WASHER,M16, Hvy

16шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

10

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

Used with 1990387C1, 1990388C1; ref 11, 12

8шт.

10a

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

Used with 281484A1, Ref 12A

8шт.

11

1990387C1

SUPPORT

Axle Sway, Left Hand, Replaced By 281484A1, Ref 12A

1шт.

12

1990388C1

SUPPORT

Axle Sway, Right Hand, Not Illustrated, Replaced By 281484A1, Ref 12A

1шт.

12a

281484A1

LARGE PLATE

PLATE, LARGE , Left Hand, Right Hand

2шт.

13

238749A1

LARGE PLATE

PLATE, LARGE , Anti Sway, Power Guide Axle

2шт.

14

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

8шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

16

259687A1

SUPPORT

Rear Hose Guide, Power Guide Axle

1шт.

17

626-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

6шт.

18

892-16020

LOCK WASHER,M20, Hvy

6шт.

Выбрано товаров: 20
