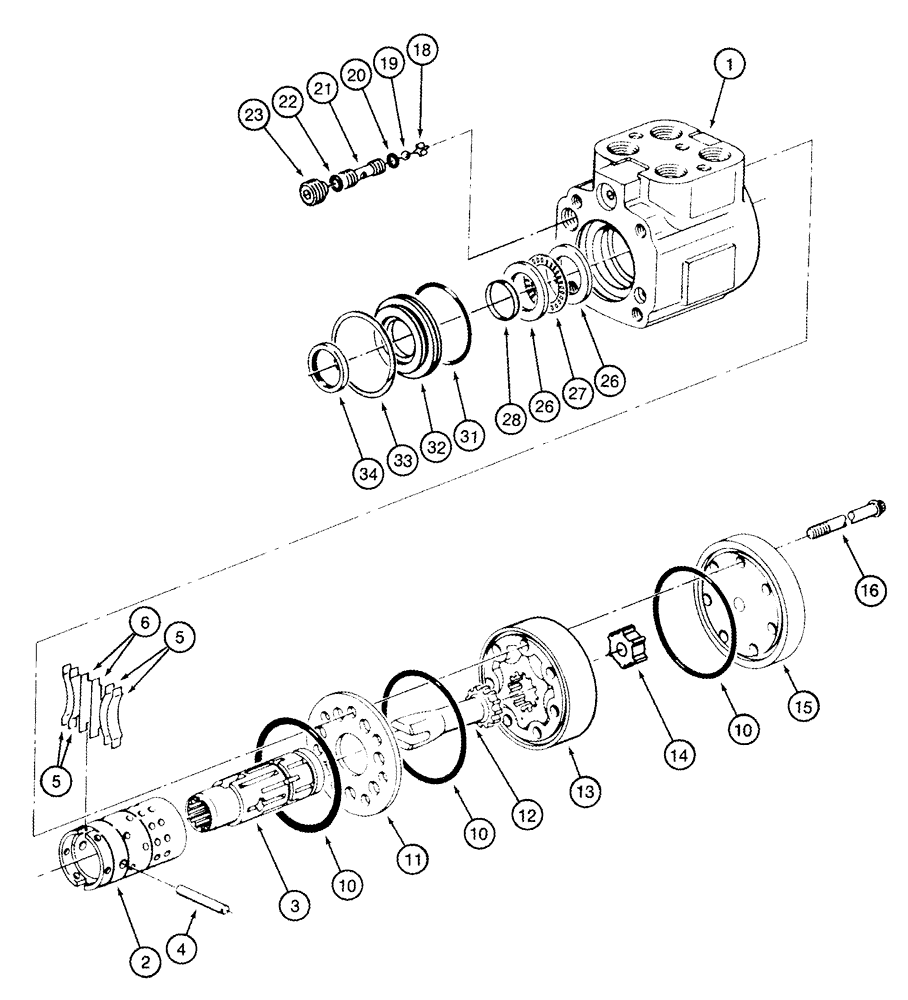

Запчасти Case IH 2555 (05-04) - PUMP ASSY STEERING HAND (04) - STEERING

126110A1

PUMP

Steering Hand, Consists Of 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

Housing Assy, Includes 1A, 1B

1шт.

1a

NSS

NOT SOLD SEPARAT

Valve, Check, Manual Steering, Not Illustrated

1шт.

1b

NSS

NOT SOLD SEPARAT

Valve, Check, Inlet, Not Illustrated

1шт.

2

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

L30888

PIN

1шт.

N14250

KIT

Consists Of 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Spacer

2шт.

10

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

3шт.

11

136493A1

COVER

Replaces S113037

1шт.

12

L30878

DRIVE SHAFT

1шт.

13

NSS

NOT SOLD SEPARAT

Gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

Spacer

1шт.

15

136493A1

COVER

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Special

7шт.

18

L35368

RETAINER

1шт.

19

211-1010

BALL,5/16" OD

Check

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

D82806

VALVE SEAT

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

23

D82805

SET SCREW

1шт.

26

D82804

RACE

Needle Bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

28

121179A1

SEAL

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

32

N13312

CYLINDER END CAP

1шт.

33

S110169

WASHER

1шт.

34

697494R91

OIL SEAL

1шт.

1343658C3

SEAL KIT

Consists Of 10, 20, 22, 28, 31, 34

1шт.
