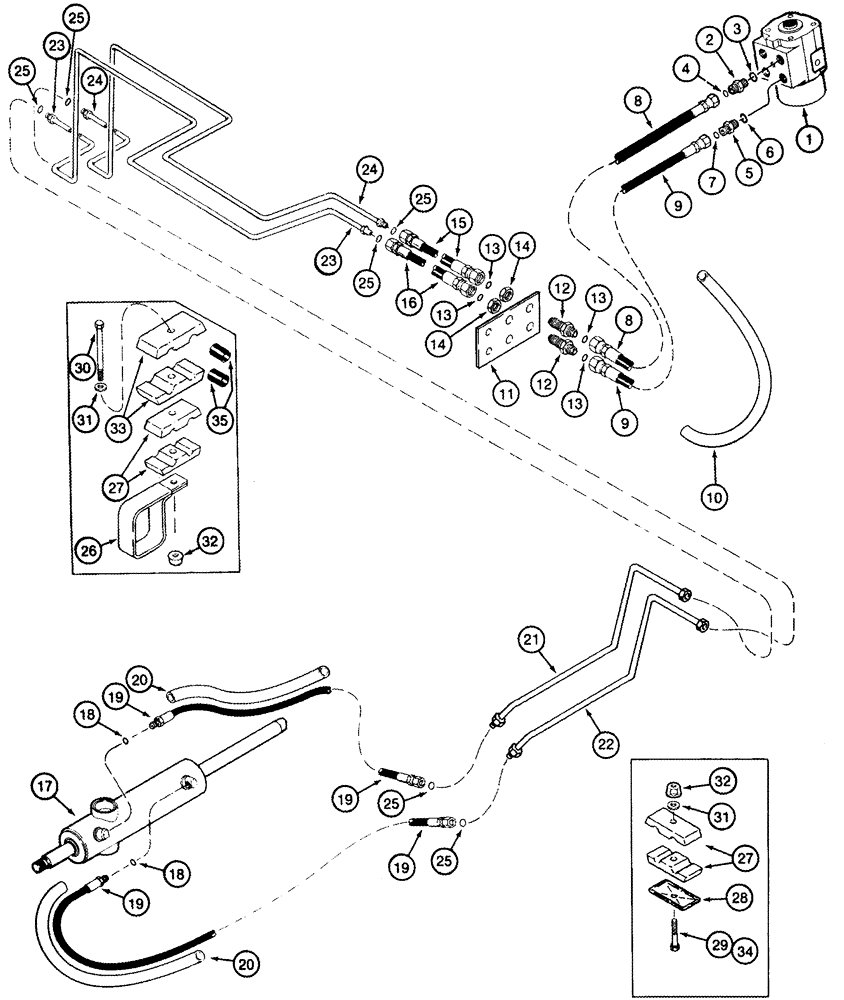

Запчасти Case IH 2555 (05-03) - HYDRAULICS STEERING (04) - STEERING

1

126110A1

PUMP

Steering, See Page(s) 5-13

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

Includes 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

187656A1

HOSE

1шт.

9

187655A1

HOSE

1шт.

10

191134A1

HOSE,60.3mm ID x 956mm L

1шт.

11

184359A2

LARGE PLATE

PLATE, LARGE

1шт.

12

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Includes 13, 14

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

15

187649A1

HOSE

1шт.

16

187651A1

HOSE

1шт.

17

93194C8

STEERING CYLINDER

See Page(s) 5-27

1шт.

17

93194C9R

REMAN-HYD CYLINDER

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), Reman For New PN 93194C8

1шт.

17

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

19

1984283C1

HOSE

2шт.

20

1546059C1

HOSE

Cut From 87283C1

2шт.

21

196459A1

TUBE

Rear, Left Hand Turn

1шт.

22

196460A1

TUBE

Rear, Right Hand Turn

1шт.

23

248691A1

HYD TUBE

Middle, Left Hand Turn

1шт.

24

248690A1

HYD TUBE

Middle, Right Hand Turn

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

26

1301387C2

CLIP

2шт.

27

1546024C1

CLAMP

8шт.

28

1347127C1

PLATE

5шт.

29

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

4шт.

30

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

31

495-21038

WASHER,5/16"

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

1546026C1

CLAMP

5шт.

34

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

35

163489C1

STRIP

1/4 ID x 1-13/64

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
