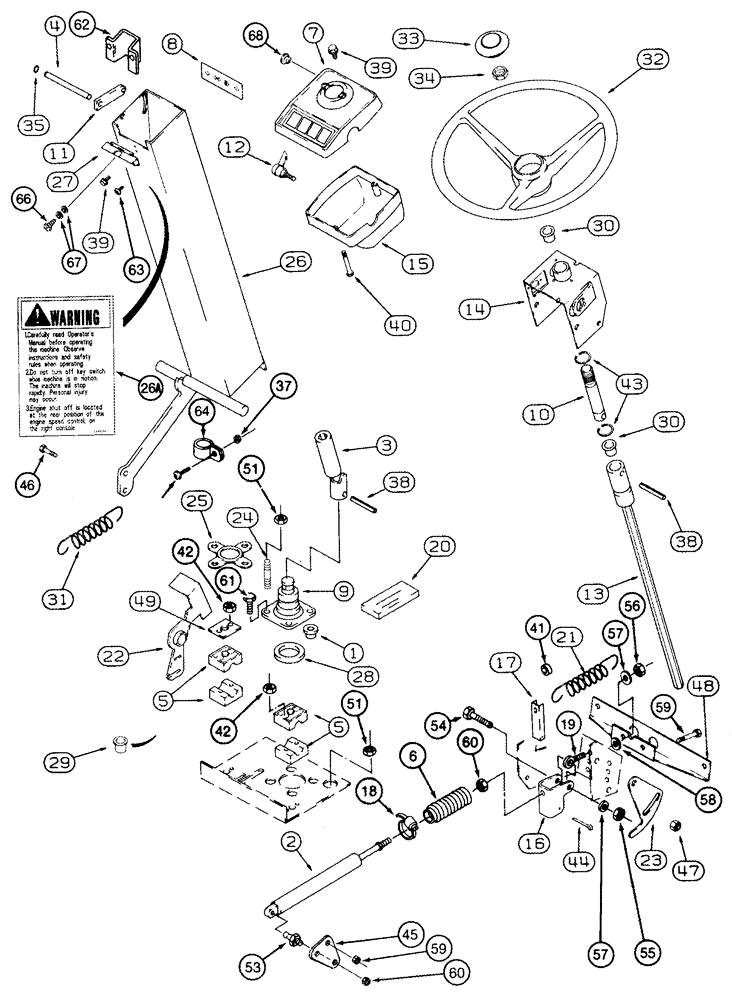

Запчасти Case IH 2555 (05-01) - STEERING WHEEL MOUNTING (04) - STEERING

1

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

4шт.

2

224357A1

GAS STRUT

1шт.

3

119760A1

FLEXIBLE JOINT

1шт.

4

119830A1

ROD

1шт.

5

120326A2

BALL BEARING,24 mm

4шт.

6

195089A1

BOOT

Cylinder

1шт.

7

120329A4

COVER

Steering Console

1шт.

8

120332A1

DECAL

Directional Arrows

1шт.

9

120338A2

STEERING COLUMN

Steering Pump

1шт.

10

124054A2

SHAFT

Order 124054A3, 495-81051

1шт.

10a

124054A3

SHAFT

Not Illustrated

1шт.

10b

495-81051

WASHER,29/32" x 1 1/4" x .060"

Not Illustrated

2шт.

11

127040A2

PLATE

1шт.

12

129255A1

HANDLE

1шт.

13

130952A2

FLEXIBLE JOINT

1шт.

14

130953A3

SUPPORT

1шт.

15

130956A4

COVER

1шт.

16

224761A1

CLEVIS

Cylinder Mounting

1шт.

17

130958A1

GUIDE

1шт.

18

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

19

224235A1

BALL JOINT

1шт.

20

130961A1

FOAM INSULATION

1шт.

21

130962A2

SPRING

1шт.

22

136798A1

PEDAL

1шт.

23

136800A1

SUPPORT

1шт.

24

198892A1

STUD

Pump Mounting

1шт.

25

136805A1

RETAINER

1шт.

26

192374A4

TUBE

Includes 26A

1шт.

26a

239509A1

DECAL

Read the Operator's Manual, English

1шт.

27

136919A1

COVER

1шт.

28

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

1шт.

29

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

Spacer

1шт.

235955A1

PACKAGE

Steering Column, Gas Strut, Consists Of 2, 6, 16, 18, 19, 41, 45, 46, 48, 52 - 60

1шт.

30

373445R1

BUSHING,22.25mm ID x 22.99mm L

Shaft Support

2шт.

31

182652A1

SPRING

1шт.

32

251342A1

STEERING WHEEL

1шт.

33

187177A1

CAP

1шт.

34

F19646

LOCK NUT,13/16"-20, Thin

1шт.

35

100-3337

SNAP RING,E-Type, 0.3" OD

2шт.

37

233186A1

NUT

1шт.

38

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

3/8" x 1 1/4", Coiled

2шт.

39

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

3шт.

40

540-714

SCREW,Pan HD, M3 x 45mm, Cl 4.8

2шт.

41

224089A1

SPACER

1шт.

42

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

43

100-1187

SNAP RING,#87, Ext

2шт.

44

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

45

223917A1

PLATE

1шт.

46

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

47

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

48

120143A4

SUPPORT

1шт.

49

185268A1

PLATE

2шт.

50

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

Not Illustrated

1шт.

51

425-106

NUT,3/8"-16, Cl 5

1шт.

52

3233348R1

CLIP

Not Illustrated

1шт.

53

3234063R1

BALL STUD,M10 x 1.5

Replaced By 142597A1

1шт.

53

142597A1

STUD

Replaces 3234063R1

1шт.

54

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

55

425-105

NUT,5/16"-18, G5

1шт.

56

425-115

NUT,5/16"-24, G5

1шт.

57

492-11031

LOCK WASHER,5/16"

2шт.

58

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

59

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

61

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3шт.

62

231985A1

GUARD

Wiring

1шт.

63

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

64

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

65

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

No. 10-16 x 5/8

1шт.

66

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

1шт.

67

492-11010

LOCK WASHER,#10

2шт.

68

353-409

PLUG,Dome, .812" hole, Nylon

1шт.

235955A1

PACKAGE

Steering Column, Gas Strut, Consists Of 2, 6, 16, 18, 19, 41, 45, 46, 48, 52 - 60

1шт.

60

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
