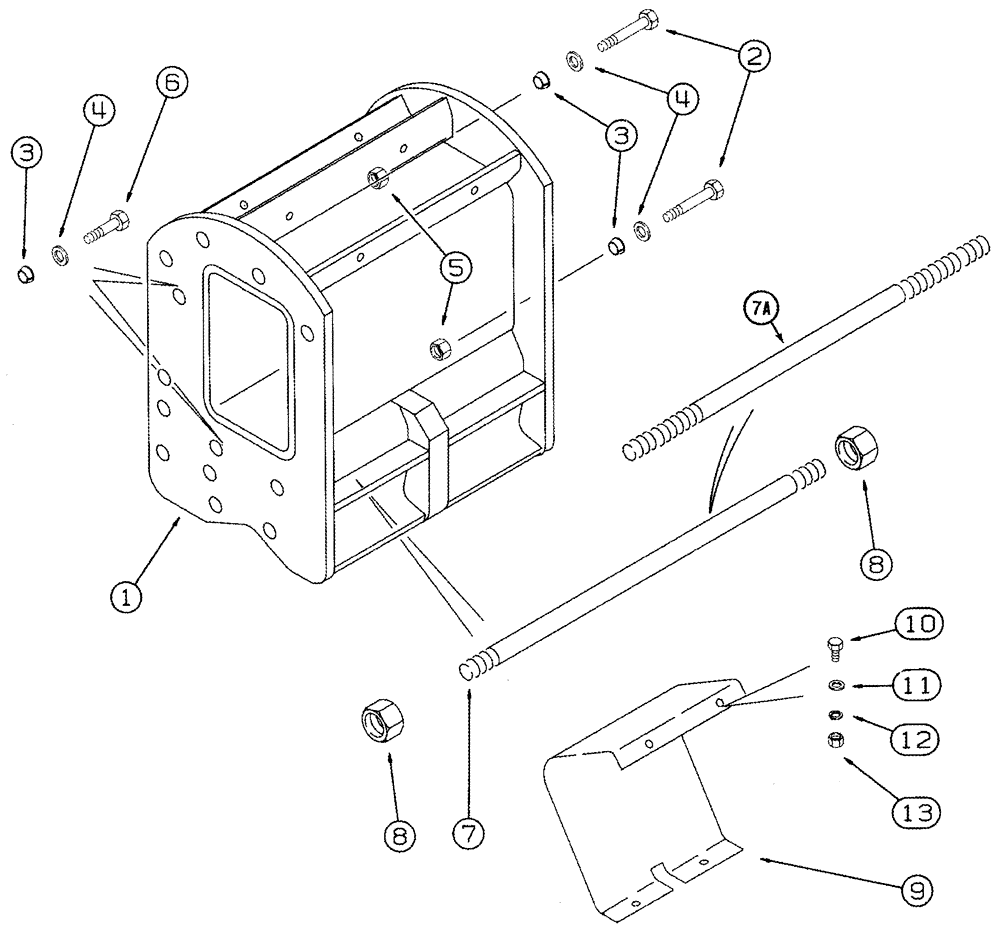

Запчасти Case IH 2555 (06-21) - AXLE SPACERS (03) - POWER TRAIN

1

125386A1

EXTENSION

Single Wheel, 5 Row Wide, Dual Ready Wheels, 5 Row Narrow, Brazil 5 Row Narrow To 5 Row Wide conversion

2шт.

1

181278A1

EXTENSION

Left Hand, Dual Ready Wheels, 4 Row Wide

1шт.

1

181279A1

EXTENSION

Right Hand, Dual Ready Wheels, 4 Row Wide

1шт.

1

127271A1

EXTENSION

Right Hand, Dual Ready Wheels, 5 Row Wide

1шт.

1

127272A1

EXTENSION

Left Hand, Dual Ready Wheels, 5 Row Wide

1шт.

2

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

26шт.

3

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

4шт.

4

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

52шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

26шт.

6

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

26шт.

7

125395A1

BOLT,1 1/4" - 7 x 2016mm, Full Thd

Axle Tension, Used With 125386A1, REF 1

1шт.

7

127279A1

BOLT,1 1/4 - 7 x 2896mm

Axle Tension, Used With 127271A1, 127272A1, REF 1

1шт.

7

1990365C1

STEM,Hex, 1 1/4" - 7 x 1921mm

Axle Tension, Used With 181278A1, 181279A1, REF 1

1шт.

7a

297761A1

ROD,THREADED

THREADED ROD , Axle Tension, Used With 125386A1, REF 1, Brazil 5 Row Narrow To 5 Row Wide conversion

1шт.

8

232-41320

LOCK NUT,1 1/4"-7, GC

2шт.

9

131211A1

GUARD

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

11

495-31016

WASHER,#6

8шт.

12

492-11031

LOCK WASHER,5/16"

8шт.

13

425-105

NUT,5/16"-18, G5

8шт.
