Запчасти Case IH 2555 (06-20) - FINAL DRIVE ASSY (03) - POWER TRAIN

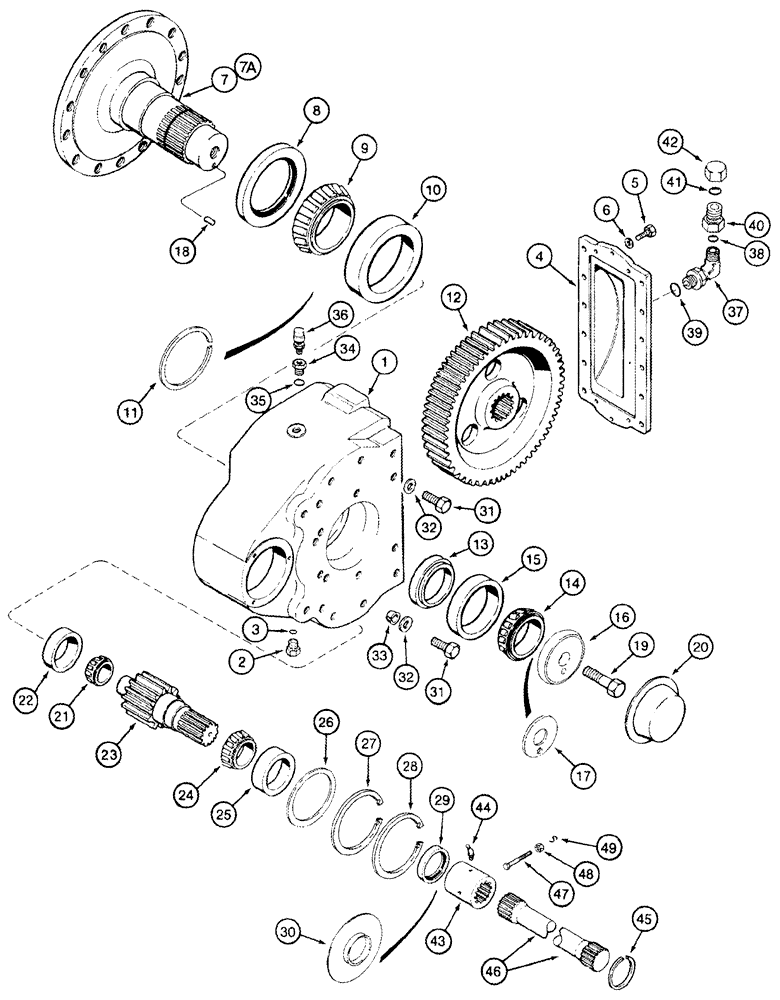

Схема запчастей Case IH 2555 - (06-20) - FINAL DRIVE ASSY (03) - POWER TRAIN
11
32
44
3
37
19
30
27
13
45
16
32
5
42
17
48
43
14
7a
31
36
26
22
24
29
38
1
39
12
10
49
28
23
34
21
40
41
47
46
20
4
7
15
35
8
18
2
33
31
25
6
9

Артикул

Название

Примечание

Количество

1997415C3

REDUCER

Final, No Longer Available, Order 1997415C4, Consists Of 1 - 30

2шт.

1997415C4

FINAL DRIVE

FINAL REDUCTION GEARBOX , Final, Consists Of 1 - 30

2шт.

1

135285A2

HOUSING

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

135286A1

COVER

1шт.

5

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

7

135288A2

SHAFT

Output Shaft, No Longer Available, Order 335949A1

1шт.

335949A1

SHAFT

Consists Of

1шт.

7a

NSS

NOT SOLD SEPARAT

Shaft, Output Shaft

1шт.

8

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

1шт.

9

335947A1

ROLLER BEARING,133.35mm ID x 46.04mm W

Replaces 135649A1

1шт.

10

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

1шт.

11

135297A1

CIRCLIP

1шт.

12

135287A1

PINION

73T, Final Drive

1шт.

13

135307A1

SPACER

1шт.

14

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

1шт.

15

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

1шт.

16

135289A1

RETAINER

1шт.

17

135299A1

SHIM,0.051mm Thk

(0.002")

1шт.

17

135300A1

SHIM,0.457mm Thk

(0.018")

1шт.

17

135301A1

SHIM,0.635mm Thk

(0.025")

1шт.

18

37-1512

DOWEL,5/16" x 3/4"

5/16 x 3/4

1шт.

19

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

1шт.

20

135296A1

BEARING COVER

1шт.

21

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

1шт.

22

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

1шт.

23

135290A1

SHAFT

12T

1шт.

24

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

1шт.

25

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

1шт.

26

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

1шт.

26

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

1шт.

26

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

1шт.

27

193652A1

WASHER

1шт.

28

101-21412

SNAP RING,#412, 4.430", Int

1шт.

29

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

1шт.

30

135291A1

GUARD

1шт.

31

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

26шт.

32

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

26шт.

33

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

4шт.

34

135950A1

ADAPTER

Includes 35

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

2шт.

37

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Includes 38, 39

2шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

Includes 41

2шт.

41

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

42

201-907

CAP,1-3/16" - 12 ORFS

2шт.

43

184341C2

SPLINED COUPLING

Includes 44

4шт.

44

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

45

123763A1

SNAP RING

8шт.

46

123709A1

SHAFT

Left Hand, Single Wheels, 4 Row Narrow, 4 Row Wide and 5 Row Narrow

1шт.

46

1342676C2

SHAFT

Right Hand, Single Wheels, 4 Row Narrow, 4 Row Wide and 5 Row Narrow

1шт.

46

135974A1

SHAFT

Left Hand, Single Wheel, 5 Row Wide, Dual Ready Wheels, 5 Row Narrow

1шт.

46

126098A2

SHAFT

Right Hand, Single Wheel, 5 Row Wide, Dual Wheels, 5 Row Narrow

1шт.

46

135708A1

SHAFT

Left Hand, Dual Ready Wheels, 4 Row Wide

1шт.

46

1997838C2

SHAFT

Right Hand, Dual Ready Wheels, 4 Row Wide

1шт.

46

135977A1

SHAFT

Left Hand, Dual Ready Wheels, 5 Row Wide

1шт.

46

184374C2

SHAFT

Right Hand, Dual Ready Wheels, 5 Row Wide

1шт.

46

184376C2

SHAFT

Right Hand, Brazil 5 Row Narrow To 5 Row Wide conversion

1шт.

46

304826A1

SHAFT

Left Hand, Brazil 5 Row Narrow To 5 Row Wide conversion

1шт.

47

113-2293

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

48

654049R1

LOCK NUT

4шт.

49

21864R1

COTTER PIN

Retaining

4шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 66
