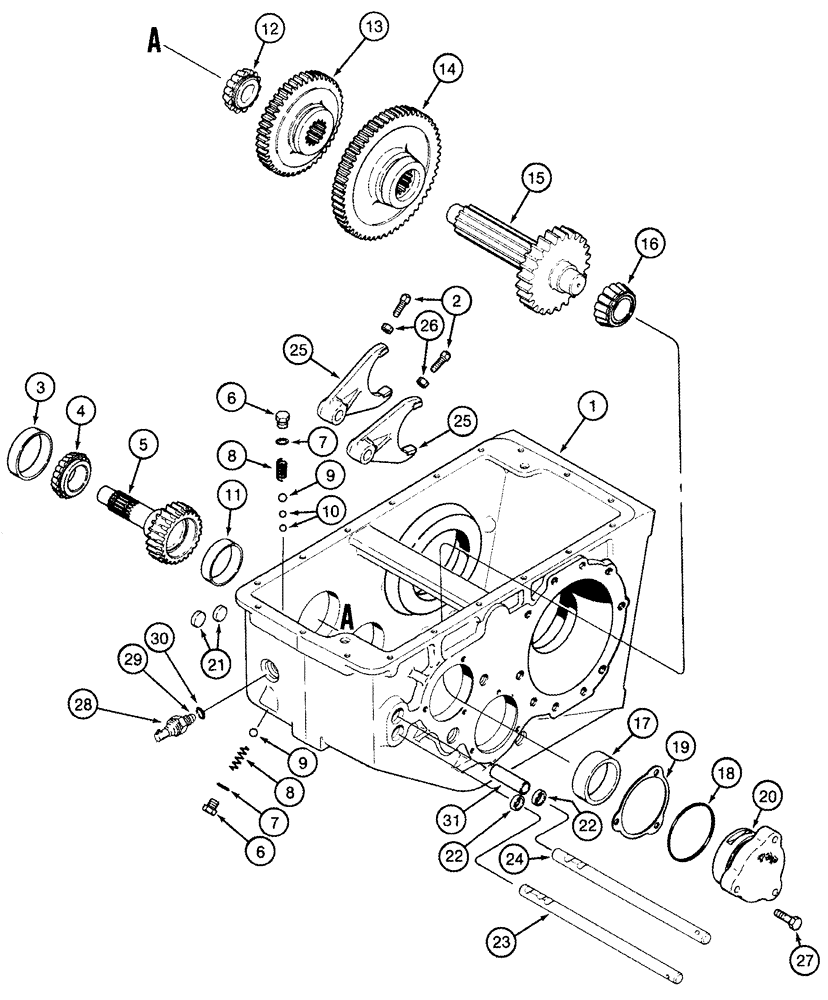

Запчасти Case IH 2555 (06-19) - TRANSMISSION ASSY (03) - POWER TRAIN

*

Input Shaft, Gears and Shifter Rails

1шт.

*

236314A1

TRANSMISSION

Consists Of 1 - 31, Includes Pages 6-43 - 6-49, 7-9

1шт.

*

236314A1R

REMAN-TRANSMISSION

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499)

1шт.

*

236314A1C

CORE-TRANSMISSION

Return Number

1шт.

1

236381A1

HOUSING

1шт.

2

1997657C1

SET SCREW

Special

2шт.

3

130503H

BEARING CUP

3-17/64 OD

1шт.

4

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1-25/32 ID

1шт.

5

119835A1

PINION

26T

1шт.

6

76349

PLUG,9/16" - 18 ORB

Incl. 7

2шт.

8

588801R1

SPRING

Detent

2шт.

9

211-1016

BALL,12.7mm OD, Gr 24

Gr.24, CRS

2шт.

10

211-1014

BALL,7/16" Dia

24,CRS

2шт.

11

50213V

BEARING CUP

2-3/4 OD

1шт.

12

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

1-5/16 ID

1шт.

13

1997592C1

PINION

26,48T, 2nd and 3rd Sliding

1шт.

14

1342487C1

PINION

57T, 1st Sliding

1шт.

15

406607R3

SHAFT

32T

1шт.

16

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

1-9/16 ID

1шт.

17

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

2-7/8 OD

1шт.

18

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

1шт.

19

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003")

1шт.

19

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005")

1шт.

19

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007")

1шт.

19

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030")

1шт.

20

1997998C1

BEARING COVER,72.99 mm ID x 101.51 mm OD x 37.8 mm

Bearing Retainer

1шт.

21

41-1612

PLUG,Cup, 3/4", Stainless

2шт.

*

Input Shaft, Gears and Shifter Rails

1шт.

236314A1R

REMAN-TRANSMISSION

Remanufactured, Only For N.A.

1шт.

236314A1C

CORE-TRANSMISSION

1шт.

236314A1

TRANSMISSION

Consists Of 1 - 31, Includes Pages 6-43 - 6-49, 7-9

1шт.

22

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

2шт.

23

1342442C3

SHIFT RAIL

2nd and 3rd Gear Shifter

1шт.

24

1342443C3

SHIFT RAIL

1st Gear Shifter

1шт.

25

1997656C1

SHIFTER FORK

2шт.

26

829-1310

NUT,M10, Cl 10

Class 10.9

2шт.

27

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Use Loctite No. 516

3шт.

28

1983575C1

SWITCH

Neutral Start

1шт.

29

211-1010

BALL,5/16" OD

5/16; 24,CRS

1шт.

31

189168A1

SPACER

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
