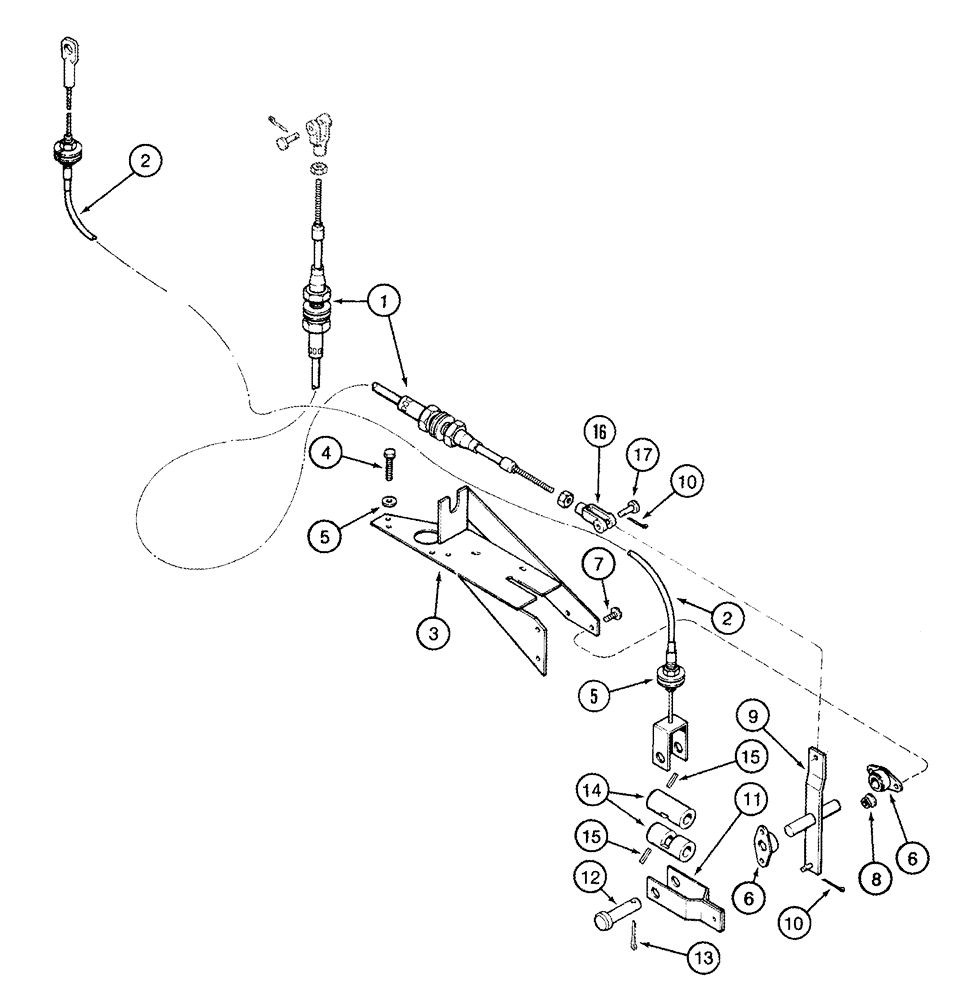

Запчасти Case IH 2555 (06-16) - TRANSMISSION LOWER SHIFT CONTROLS (03) - POWER TRAIN

1

124817A1

CABLE,2791mm L

Transmission Shift, 2nd-3rd Speed

1шт.

2

115398A1

CABLE,3209mm L

Transmission Shift, 1st Speed

1шт.

3

181376A1

SUPPORT

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

6

A63366

SPHERICAL BEARING,19mm ID

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

143588A1

LEVER

Lower Shift

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

2шт.

11

194437C1

LINK

Shift Control

1шт.

12

439-51240

HEADED PIN,19.05mm OD x 63.5mm L

1шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

14

192689C1

PIN,34.93mm OD x 73.7mm L

Special

2шт.

15

38-31620

PIN,6.35mm OD x 31.75mm L

2шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

17

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.
