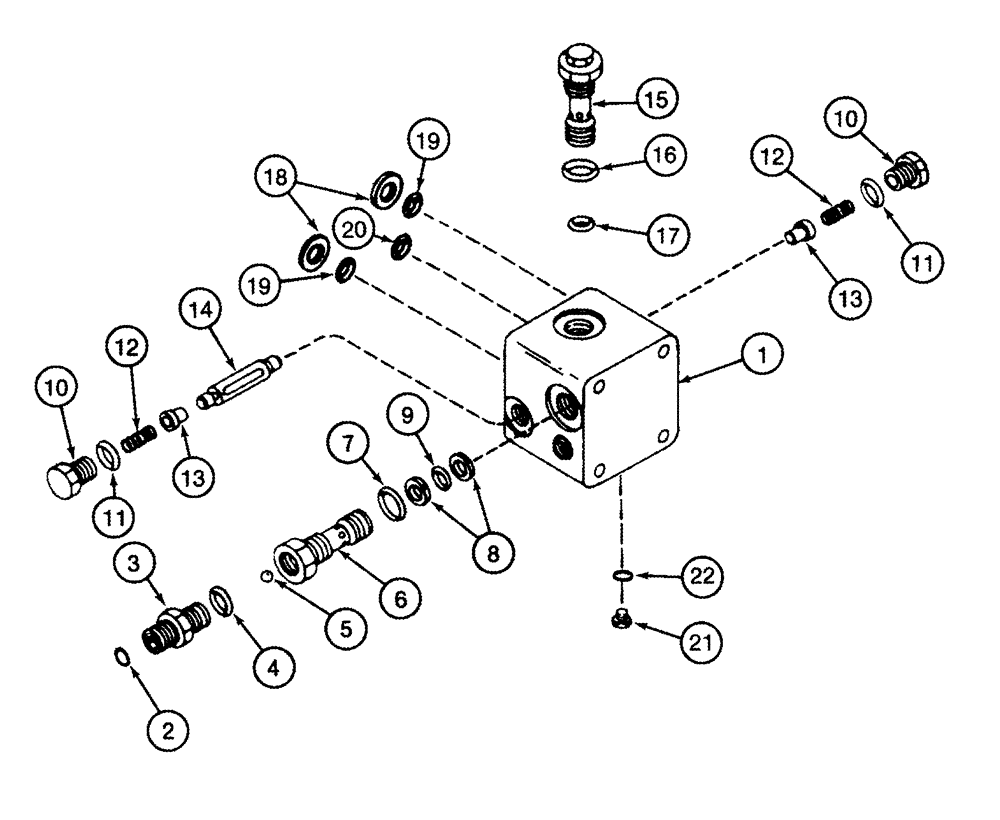

Запчасти Case IH 2555 (06-14) - MOTOR ASSY HYDROSTATIC (03) - POWER TRAIN

*

Single Speed

1шт.

*

Relief Valve Block

1шт.

183296A2

MOTOR, HYDRAULIC

Includes Pages 6-33 - 6-37

1шт.

183296A2R

REMAN-HYD MOTOR

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), BSN JJC0249499

1шт.

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

193646A2

BLOCK

Relief Valve, Consists Of 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Block

2шт.

193647A1

VALVE PRESSURE RELIE

Consists Of 2 - 9

1шт.

222167A1

REPAIR KIT

Check Valve, Consists Of 2 - 5

1шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Connector

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

211-1008

BALL,1/4" Dia

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

393885R92

SEAL KIT

Relief Valve, Consists Of 7 - 9

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

393887R1

BACK-UP RING

2шт.

9

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

145559C91

KIT

Shuttle Valve, Consists Of 10 - 14

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

145560C1

SPRING

2шт.

13

NSS

NOT SOLD SEPARAT

Poppet, Valve

2шт.

14

NSS

NOT SOLD SEPARAT

Spool

1шт.

140761C1

VALVE PRESSURE RELIE

Incl. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

17

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

140747C92

SEAL KIT

Block Mounting, Consists Of 18 - 20

1шт.

18

631458C1

RING

2шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

20

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

21

9672438

PLUG,7/16" - 20 ORB

Incl. 22

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
