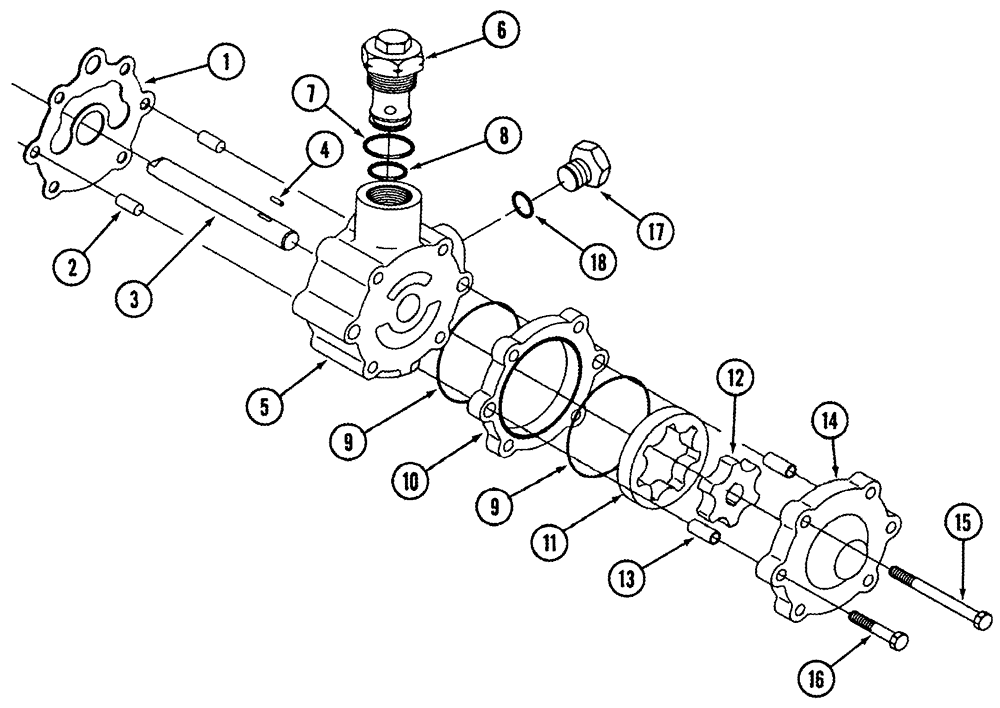

Запчасти Case IH 2555 (06-12) - PUMP ASSY HYDROSTATIC (03) - POWER TRAIN

*

Charge Pump

1шт.

*

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP , New, Includes Pages 6-19 - 6-31

1шт.

*

1986824C5R

REMAN-HYDROSTAT PUMP

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), HYDROSTATIC PUMP, New, PUMP ASSY

1шт.

*

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

*

107593A2

PUMP

Charge, Consists Of 1 - 18

1шт.

1

133760C2

GASKET

1шт.

2

37-1510

DOWEL,5/16" x 5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

*

1986741C1

VALVE PRESSURE RELIE

Consists Of 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Spacer

1шт.

11

NSS

NOT SOLD SEPARAT

Gerotor, Inner

1шт.

12

NSS

NOT SOLD SEPARAT

Gerotor, Outer

1шт.

13

NSS

NOT SOLD SEPARAT

Dowel

2шт.

14

NSS

NOT SOLD SEPARAT

Cover

1шт.

15

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

17

86512512

PLUG,7/8" - 14 ORB

Incl. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

*

255081A1

SEAL KIT

Seal, Consists Of 1, 7, 8 9, 18

1шт.
