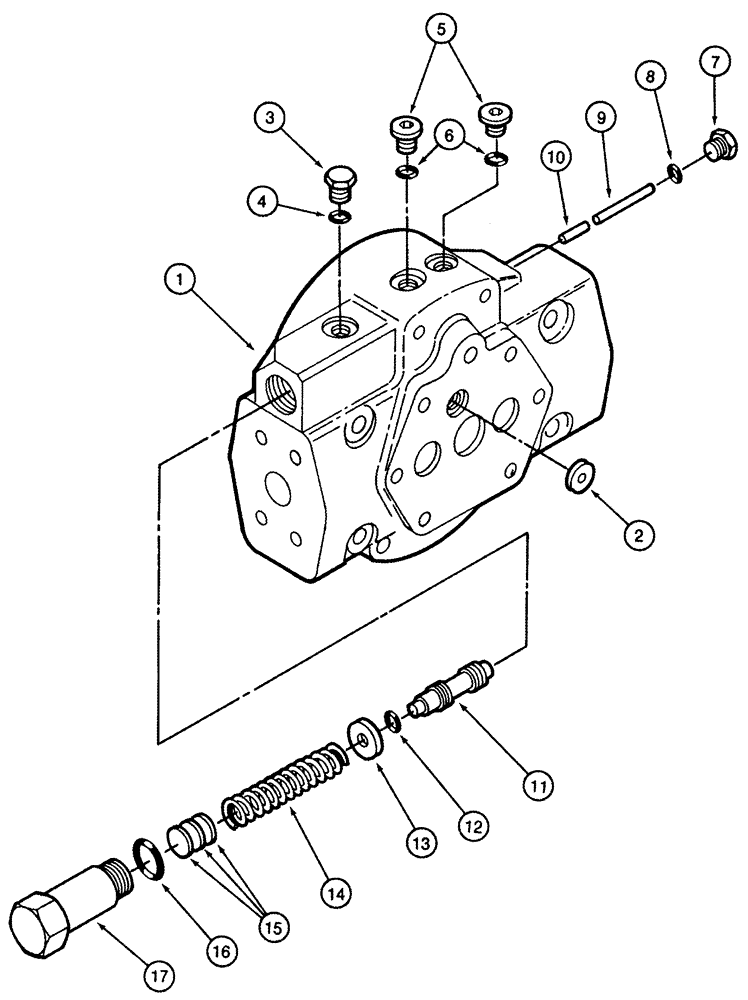

Запчасти Case IH 2555 (06-11) - PUMP ASSY HYDROSTATIC (03) - POWER TRAIN

*

Internal Pressure Override Repair

1шт.

*

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP , New, Includes 1 - 17, Includes Pages 6-19 - 6-31

1шт.

*

1986824C5R

REMAN-HYDROSTAT PUMP

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), HYDROSTATIC PUMP, New, PUMP ASSY

1шт.

*

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Cover

1шт.

2

107592A1

WASHER

Control

1шт.

3

9672438

PLUG,7/16" - 20 ORB

Incl. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

*

1986739C1

REPAIR KIT

Spool, Internal Pressure Override, Consists Of 7 - 17

1шт.

7

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

Includes 8

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Roller

1шт.

10

NSS

NOT SOLD SEPARAT

Roller

1шт.

11

NSS

NOT SOLD SEPARAT

Spool

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Spacer

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

*

235419A1

SHIM KIT

Valve, Consists Of 15

1шт.

15

NSS

NOT SOLD SEPARAT

0,002 in, Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0,005 in, Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0,010 in, Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0,031 in, Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0,062 in, Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0,100 in, Shim

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.
