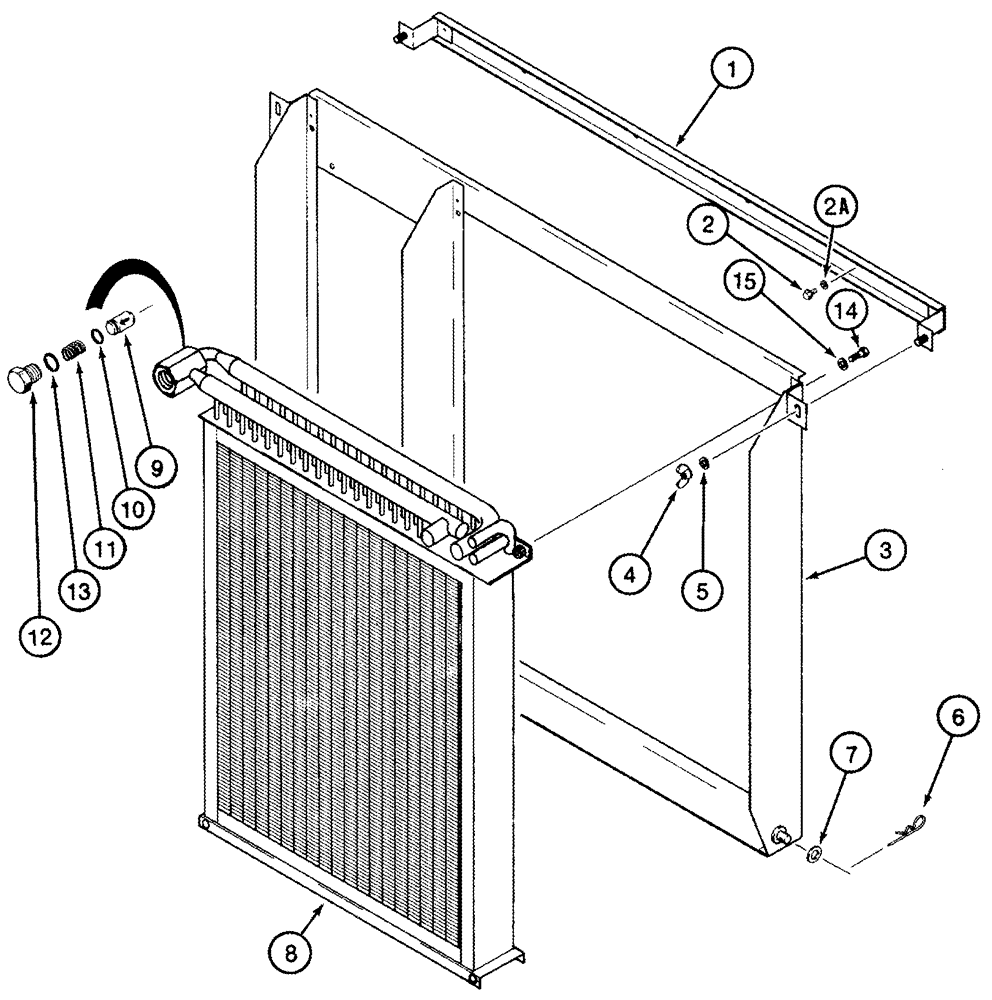

Запчасти Case IH 2555 (06-02) - OIL COOLER MOUNTING (03) - POWER TRAIN

1

1984009C1

SUPPORT

Upper

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

2a

492-11031

LOCK WASHER,5/16"

4шт.

3

87581C2

SUPPORT

Cooler

1шт.

4

129-419

WING NUT,5/16"-18

2шт.

5

492-11031

LOCK WASHER,5/16"

2шт.

6

473443R1

COTTER PIN

Quick Attach Type

2шт.

7

495-11053

WASHER,1/2", SAE

2шт.

8

220589A1

COOLER

1шт.

9

93198C1

VALVE

1шт.

10

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

11

A189029

SPRING

By-Pass

1шт.

12

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

892-11008

LOCK WASHER,8mm ID

4шт.
