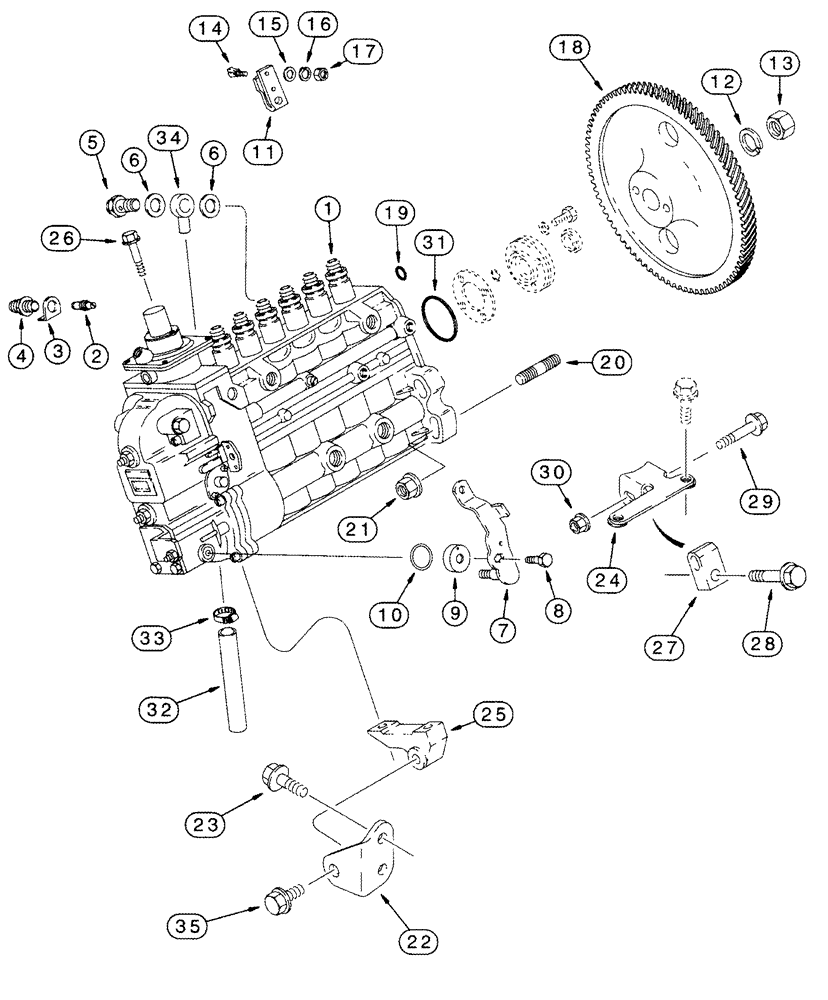

Запчасти Case IH 2555 (03-06) - FUEL INJECTION PUMP AND DRIVE (02) - FUEL SYSTEM

*

6TA-830 Emissions Certified Engine

1шт.

1

J926887

PUMP, FUEL INJECTION

PUMP, INJECTION , Consists Of 2 - 17

1шт.

1

JR926887

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC926887

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J932096

VALVE

1шт.

6

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

7

J929322

LEVER

1шт.

8

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

9

691292C1

RETAINER

1шт.

10

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

11

1808728C1

LEVER

1шт.

12

J920922

LOCK WASHER

1шт.

13

J920921

NUT

M20 x 1,5

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

829-1306

NUT,M6, Cl 10

1шт.

18

J931380

GEAR

1шт.

19

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

20

J915036

STUD

55 mm (2-5/32 in)

4шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

22

J930841

SUPPORT

1шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

24

J930382

HOLDER

1шт.

25

J926273

SUPPORT

1шт.

26

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

2шт.

27

J930383

SUPPORT

1шт.

28

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

29

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

30

J900589

NUT

M8

1шт.

31

J924605

SEAL

1шт.

32

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

33

J923527

CLAMP

17/32 x 19/64

1шт.

34

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

35

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

1шт.
