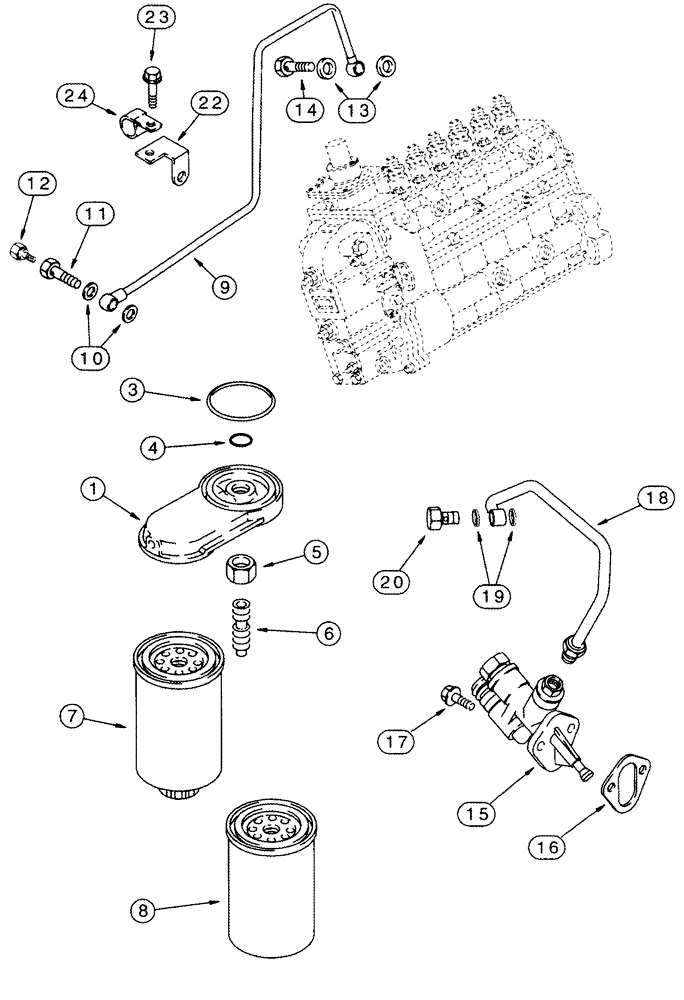

Запчасти Case IH 2555 (03-05) - FUEL FILTER PUMP, TRANSFER (02) - FUEL SYSTEM

6TA-830 Emissions Certified Engine

1шт.

1

J897331

SUPPORT

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING , 70 mm

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING , 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

7

J925274

FILTER, FUEL

1шт.

8

J903640

FILTER, FUEL

1шт.

9

J930766

FUEL TUBE,8 mm OD x 468.4, 103.5 mm L

1шт.

10

J918191

PACKING RING

12 x 18 x 1 mm

2шт.

11

J905860

BANJO BOLT

Consists Of 12

1шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

15

J936317

PUMP

1шт.

16

J931348

GASKET

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

19

J918191

PACKING RING

12 x 18 x 1 mm

2шт.

20

J916361

BANJO BOLT

M12 x 24

1шт.

22

J930384

BRACE

1шт.

23

J924962

FLANGE BOLT

M8 x 16

2шт.

24

J914711

CLIP

1шт.
