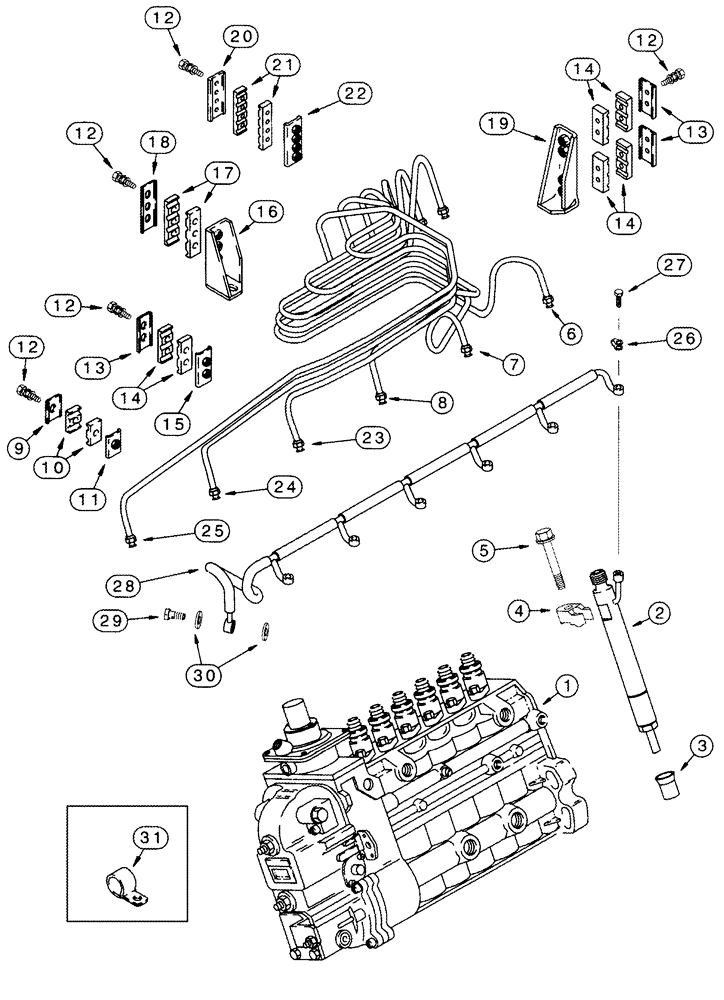

Запчасти Case IH 2555 (03-03) - FUEL INJECTION SYSTEM (02) - FUEL SYSTEM

6TA-830 Emissions Certified Engine

1шт.

1

J926887

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

2

REF

INSTRUCTION

Injector Assy, See Page(s) 3-15

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

J922018

FLANGE BOLT

M8 x 80; 12

6шт.

6

J929801

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

1шт.

7

J929802

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

1шт.

8

J929803

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

1шт.

9

CURJ904711

CLAMP

1шт.

10

J917746

CLAMP

2шт.

11

J917717

BRACE

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

14шт.

13

J904519

SUPPORT

3шт.

14

J917747

CLAMP

6шт.

15

J917716

BRACE

1шт.

16

J921416

HOLDER

1шт.

17

J918786

FIXING BRACKET

2шт.

18

J918785

BRACE

1шт.

19

J921415

HOLDER

1шт.

20

J910686

BRACE

1шт.

21

J917749

CLAMP

2шт.

22

J917740

BRACE

1шт.

23

J929804

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

1шт.

24

J929805

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

1шт.

25

J929806

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

1шт.

26

J903380

SEAL

6шт.

27

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

28

J920595

TUBE ASSY.

1шт.

29

J924726

BANJO BOLT

1шт.

30

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

31

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.
