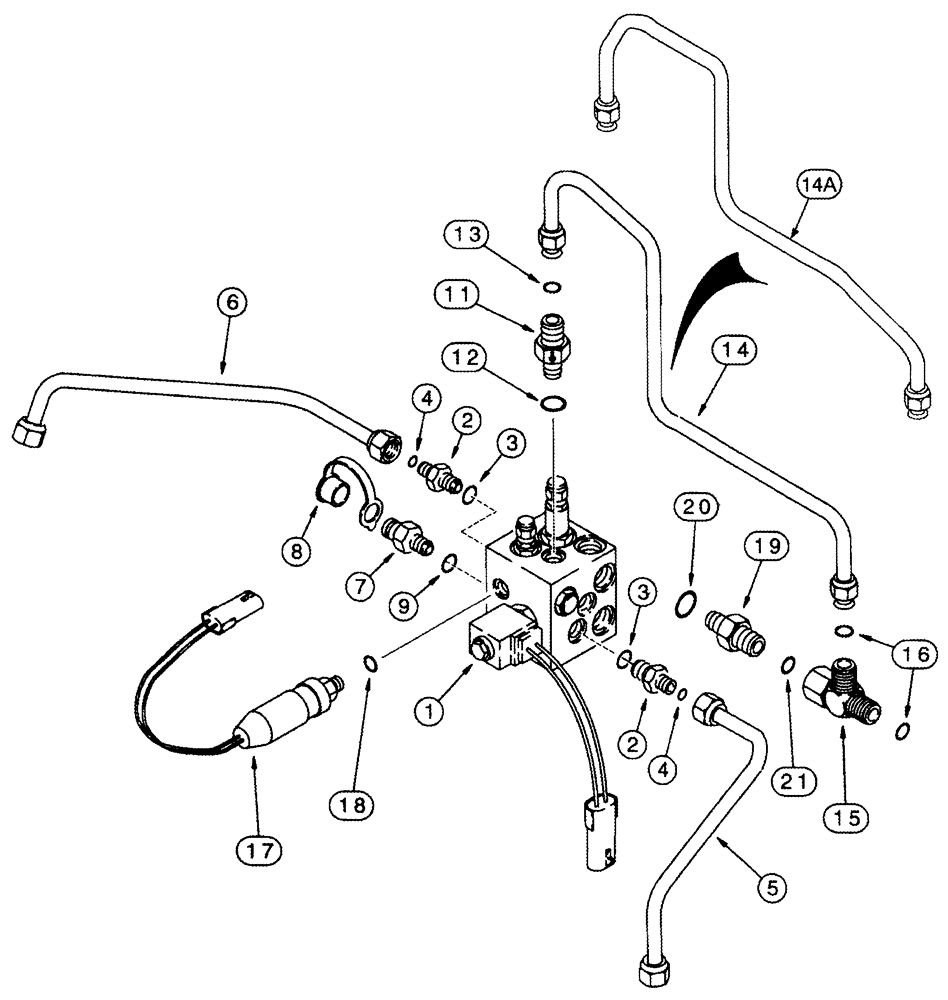

Запчасти Case IH 2555 (07-06) - PARKING BRAKE AND TOW VALVE HYDRAULIC SYSTEM JJC0157150- (5.1) - BRAKES

1

138367A4

VALVE

Regulator and Parking Brake, See Page(s) 7-17, See Note

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3, 4

2шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

184357A1

TUBE

Right Hand

1шт.

6

184358A1

TUBE

Left Hand

1шт.

1541849C1

COUPLING

Diagnostic, Includes 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Coupling

1шт.

8

H434163

DUST CAP

1шт.

11

299077A1

CHECK VALVE,11/16" - 16 ORFS x 9/16" - 18 ORB

Includes 12, 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

299073A1

PIPE

Tow Valve, No Longer Available, Order 328200A1

1шт.

14a

328200A1

PIPE

1шт.

15

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

At Brake, Includes 16

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

125829A1

PRESSURE SWITCH

Parking Brake, See Page(s) 4-21, REF 44, Includes 18

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 20, 21

1шт.

18

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
