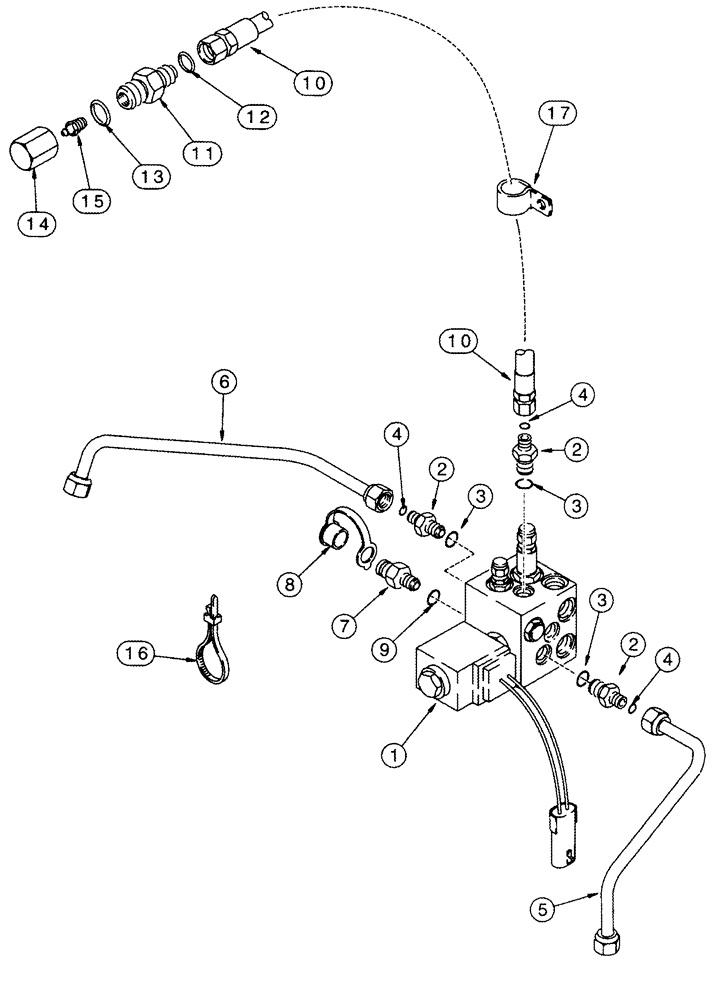

Запчасти Case IH 2555 (07-05) - PARKING BRAKE AND TOW VALVE HYDRAULIC SYSTEM -JJC0157149 (5.1) - BRAKES

1

138367A4

VALVE

Regulator and Parking Brake, See Page(s) 7-17, See Note

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3, 4

3шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

184357A1

TUBE

Right Hand

1шт.

6

184358A1

TUBE

Left Hand

1шт.

1541849C1

COUPLING

Diagnostic, Includes 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Coupling

1шт.

8

H434163

DUST CAP

1шт.

10

191290A1

HOSE

To Tow Valve

1шт.

128672A2

VALVE

Includes 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Cover

1шт.

15

219-16

LUBE NIPPLE,5/16" NPTF

1шт.

16

702093C1

CABLE TIE

CABLE STRAP

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
