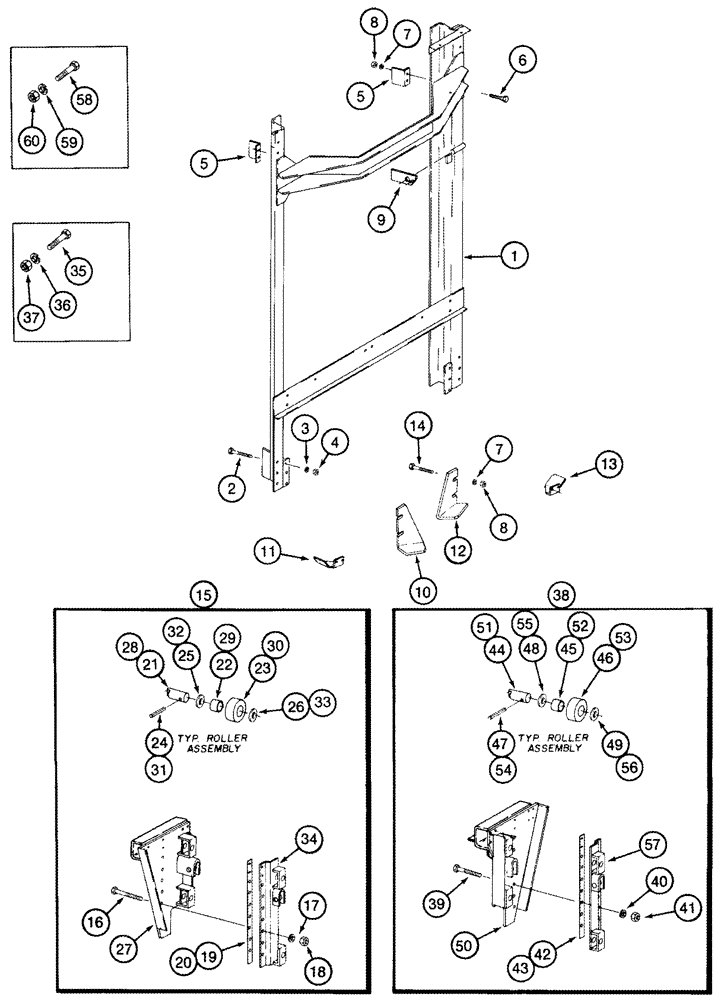

Запчасти Case IH 2555 (09D-18) - BASKET, LIFT (16) - BASKET

Front And Rear

1шт.

1

1349869C4

FRAME

Mast, Front

2шт.

1

1345022C4

FRAME

Mast, Rear

2шт.

2

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

24шт.

4

429-108

NUT,1/2"-13, G8

1/2; 8

12шт.

5

1278638C1

SUPPORT

Upper Stop

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

REF

INSTRUCTION

Bar, Basket Lock, Front And Rear, See Page(s) 9D-55, 9D-57

2шт.

10

1345223C1

DEFLECTOR

Front Corner, Left Hand

1шт.

11

1288804C1

DEFLECTOR

Rear Corner, Left Hand

1шт.

12

1288805C1

DEFLECTOR

Rear Corner, Right Hand

1шт.

13

1345224C1

DEFLECTOR

Front Corner, Right Hand

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

248304A1

SUPPORT ASSY.

Left Hand, Consists Of 16 - 34, Not Available As An Assembly, Order Components 16 - 34

2шт.

16

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

7шт.

17

492-11062

BEARING WASHER,5/8"

7шт.

18

429-1010

NUT,5/8"-11, G8

7шт.

Front And Rear

1шт.

248304A1

SUPPORT ASSY.

Consists Of 16 - 34, Continued From Previous Page, Not Available As An Assembly, Order Components 16 - 34

2шт.

19

1266357C1

SHIM

1/32 in

1шт.

20

1266358C1

SHIM

1/16 in

1шт.

248321A1

SUPPORT ASSY.

Basket, Left Hand, Includes 21 - 27

1шт.

21

1260150C2

SHAFT

3шт.

22

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

23

1260135C1

ROLL

3шт.

24

38-31232

PIN,4.75mm OD x 50.8mm L

3/16" x 2", Coiled

3шт.

25

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

6шт.

26

495-11106

WASHER,1", SAE

3шт.

27

248610A1

SUPPORT

1шт.

248324A1

SUPPORT ASSY.

Roller Carriage, Left Hand, Includes 28 - 34

1шт.

28

1260150C2

SHAFT

3шт.

29

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

30

1260135C1

ROLL

3шт.

31

38-31232

PIN,4.75mm OD x 50.8mm L

3/16" x 2", Coiled

3шт.

32

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

6шт.

33

495-11106

WASHER,1", SAE

3шт.

34

248322A1

SUPPORT ASSY.

1шт.

35

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

12шт.

35

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

8шт.

35

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

3/8 x 4-1/2; 8

16шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

36

492-11038

LOCK WASHER,3/8"

36шт.

37

429-108

NUT,1/2"-13, G8

1/2; 8

12шт.

37

429-106

NUT,3/8"-16, G8

36шт.

Front And Rear

1шт.

38

248305A1

SUPPORT ASSY.

Roller Carriage, Right Hand, Consists Of 39 - 57, Not Available As An Assembly, Order Components 39 - 57

2шт.

39

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

7шт.

40

492-11062

BEARING WASHER,5/8"

7шт.

41

429-1010

NUT,5/8"-11, G8

7шт.

42

1266357C1

SHIM

1/32 in

1шт.

43

1266358C1

SHIM

1/16 in

1шт.

248320A1

SUPPORT ASSY.

Basket, Right Hand, Includes 44 - 50

1шт.

44

1260150C2

SHAFT

3шт.

45

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

46

1260135C1

ROLL

3шт.

47

38-31232

PIN,4.75mm OD x 50.8mm L

3/16" x 2", Coiled

3шт.

48

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

6шт.

49

495-11106

WASHER,1", SAE

3шт.

50

248609A1

SUPPORT

1шт.

248325A1

SUPPORT ASSY.

Roller Carriage, Right Hand, Inc. 51 - 57

1шт.

51

1260150C2

SHAFT

3шт.

52

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

53

1260135C1

ROLL

3шт.

54

38-31232

PIN,4.75mm OD x 50.8mm L

3/16" x 2", Coiled

3шт.

55

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

6шт.

56

495-11106

WASHER,1", SAE

3шт.

57

248323A1

SUPPORT

1шт.

58

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

12шт.

58

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

8шт.

58

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

3/8 x 4-1/2; 8

16шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

59

492-11038

LOCK WASHER,3/8"

36шт.

60

429-108

NUT,1/2"-13, G8

1/2; 8

12шт.

60

429-106

NUT,3/8"-16, G8

36шт.
