Запчасти Case IH 2555 (09D-17) - UNLOADING CONVEYOR AND DRIVE (16) - BASKET

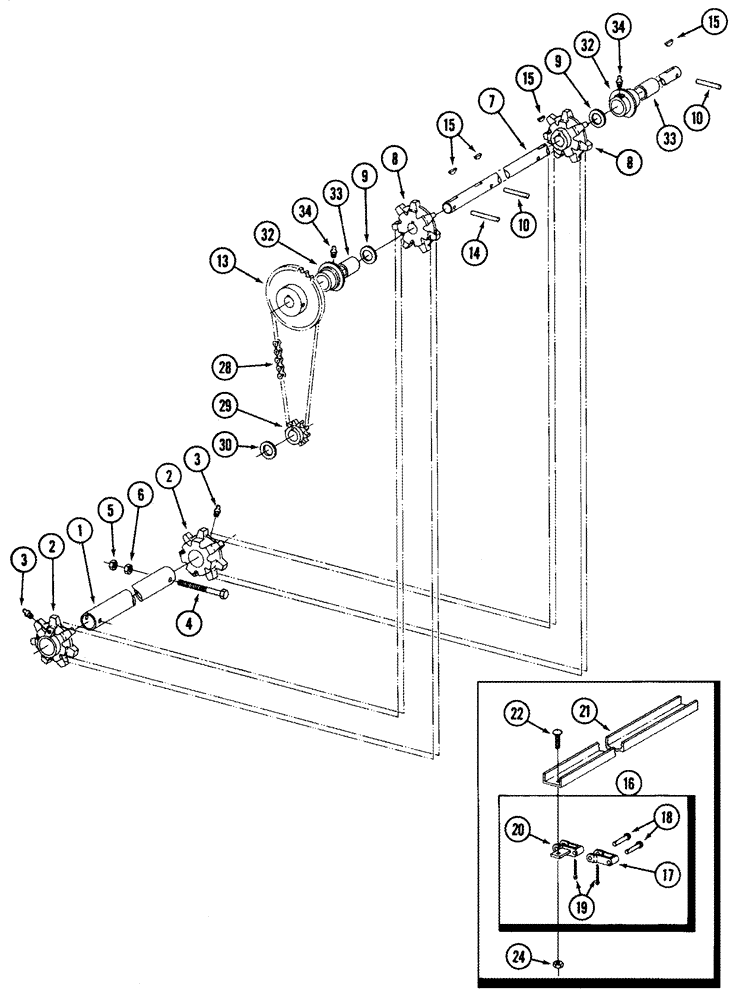

Схема запчастей Case IH 2555 - (09D-17) - UNLOADING CONVEYOR AND DRIVE (16) - BASKET
3
14
8
2
28
33
7
33
9
15
20
3
9
34
10
32
32
2
5
19
24
30
15
13
17
4
34
16
22
18
10
15
1
8
21
6
29

Артикул

Название

Примечание

Количество

1

1260354C2

TUBE,48.26 mm OD, 1628 mm Length

Idler Adjustment

2шт.

2

1270109C1

SPROCKET ASSY.

7T, Idler

4шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

4

1262728C2

BOLT,Hex, 3/8" x 6"

4шт.

5

425-146

JAM NUT,3/8" - 16, Gr 5

If Used

4шт.

6

231-1446

NUT,3/8" - 16, Gr 5

4шт.

7

1260366C2

SHAFT

1шт.

8

1269910C1

DRIVE SPROCKET

4шт.

9

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

8шт.

10

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

5/16" x 2 1/4", Slotted

4шт.

13

1260365C4

SPROCKET ASSY.

1шт.

14

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

15

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

5шт.

16

127910A1

CHAIN (AG),80 Links x 58.75mm = 4700mm

Conveyor, Length 1/2, 4 Row Wide and 5 Row Narrow, Consists Of 17 - 20, See Note (1)

8шт.

16

140154A1

CHAIN,88 Links x 58.75mm = 5170mm

Conveyor, Length 1/2, 5 Row Wide, Consists Of 17 - 20, See Note (2)

8шт.

17

821017C2

LINK,Chain

1шт.

18

821369C1

PIN,7.79mm OD x 47.93mm L

1шт.

19

1329837C2

PIN,2.63mm OD

1шт.

20

821016C1

LINK,Chain

Attaching

1шт.

Note: 1. For complete chain order (2) 127910A1; or 41 links of 821017C2 and 20 attaching links 821016C1.

1шт.

Nota: 1. Para tener la cadena completa se debe solicitar (2) 127910A1; ó 41 eslabones de 821017C2 y 20 eslabones de sujeción 821016C1.

1шт.

Nota: 1. Para obter uma corrente completa, peça (2) 127910A1; ou 41 elos 821017C2 e 20 elos de conexão 821016C1.

1шт.

Note: 2. For complete chain order (2) 140154A1; or 55 links of 821017C2 and 22 attaching links 821016C1.

1шт.

Nota: 2. Para tener la cadena completa se debe solicitar (2) 140154A1; ó 55 eslabones de 821017C2 y 22 eslabones de sujeción 821016C1.

1шт.

Nota: 2. Para obter uma corrente completa, peça (2) 140154A1; ou 55 elos 821017C2 e 22 elos de conexão 821016C1.

1шт.

21

1263020C1

CONDUIT

Conveyor Slat, 4 Row Wide and 5 Row Narrow Use Quantity of 40, 5 Row Wide Uses Quantity of 44

40-44шт.

22

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2 used per channel

1шт.

24

231-1435

LOCK NUT,5/16"-18, GB

2 used per channel

1шт.

28

141492A1

CHAIN (CE)

Includes 141493A1

1шт.

141493A1

LINK

Single Pitch

1шт.

29

1260364C1

SPROCKET ASSY.

1шт.

30

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1-1/32 x 1-1/2 x 7/64

1шт.

32

1278954C91

BEARING ASSY

Drive Shaft, Includes 33

4шт.

33

1278956C1

BUSHING,34.95mm ID x 39.7mm OD x 63.75mm L

1шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

Выбрано товаров: 35
