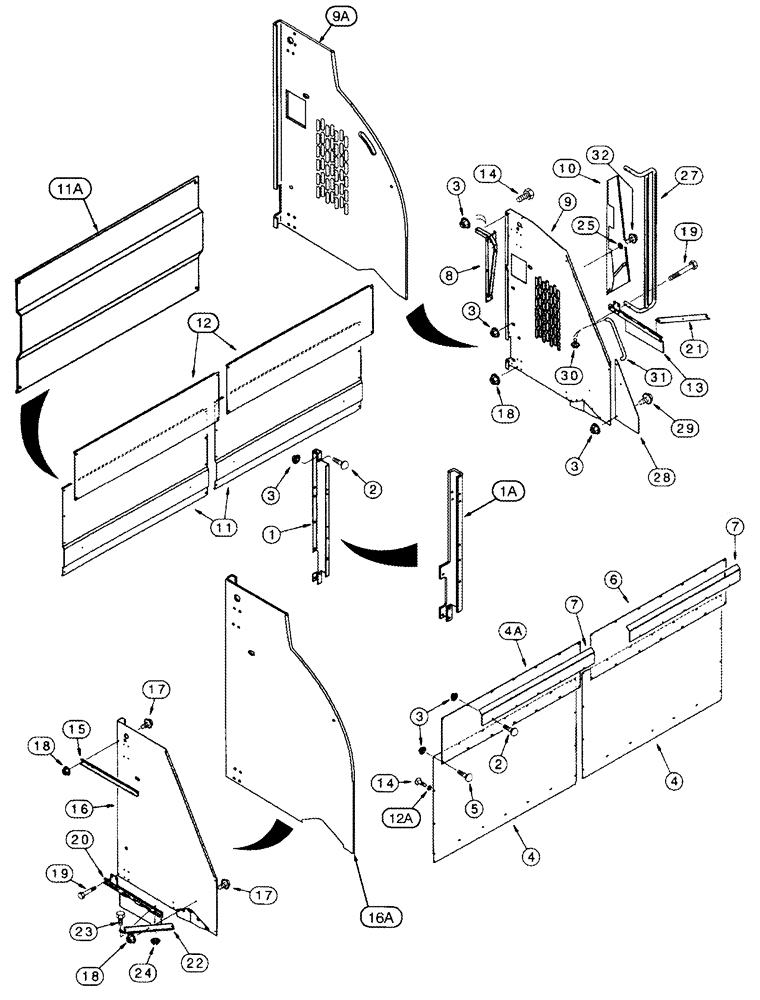

Запчасти Case IH 2555 (09D-15) - BASKET DOOR (16) - BASKET

Covers and Shields

1шт.

1

140018A2

SUPPORT

Panel Spacer, If Used

1шт.

1a

331346A1

SUPPORT

Panel Spacer

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

224901A2

SHEET

Front And Rear

2шт.

4a

224902A2

SHEET

Door Extension, Rear

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

6

224903A2

SHEET

Door Extension, Front

1шт.

7

1262686C1

SHIELD

2шт.

8

293056A1

PROTECTOR

1шт.

9

225907A2

GUARD

Front, If Used

1шт.

9a

315894A1

GUARD

1шт.

10

1994945C3

GUARD

If Used

1шт.

11

1278689C1

PANEL

Outer, If Used

2шт.

11a

331625A1

PANEL

2шт.

12

198221A2

PANEL

Outer, Upper, If Used

2шт.

12a

492-11031

LOCK WASHER,5/16"

12шт.

13

225901A1

CONDUIT

Front, If Used

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

15шт.

14a

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

5/16 st x 3/4, Not Illustrated

2шт.

15

1984205C1

ANGLE

Door End Sheet, If Used

2шт.

Covers and Shields

1шт.

16

225908A2

GUARD ASSY.

Rear Side, If Used

1шт.

16a

315893A1

GUARD ASSY.

Rear Side

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

14шт.

18

231-5146

FLANGE NUT,3/8"-16

14шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

20

225902A1

GUARD ASSY.

Shield, Rear

1шт.

21

1988652C1

ANGLE

Shield Support, Front, If Used

1шт.

22

1988683C1

ANGLE

Shield Support, Rear, If Used

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

25

495-81121

WASHER,.344" x 1 1/2" x .060"

4шт.

27

232025A1

RAMP

Long Basket Door

1шт.

28

225777A2

EXTENSION

Door Extension, If Used

2шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

If Used

2шт.

30

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

31

256952A2

HANDRAIL

If Used

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.
