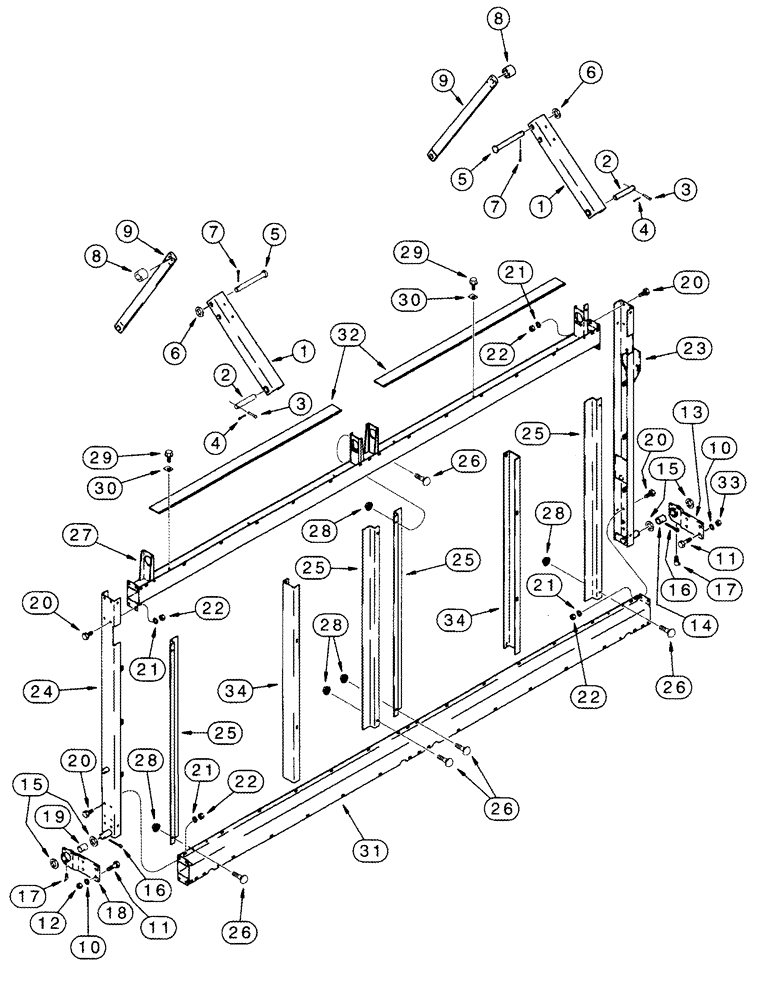

Запчасти Case IH 2555 (09D-14) - BASKET DOOR (16) - BASKET

Arms, Channels and Struts

1шт.

1

1260385C2

ARM

2шт.

2

1260395C2

SHAFT

Pivot

2шт.

3

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

2шт.

4

32-812

COTTER PIN,1/8" x 3/4"

2шт.

5

439-11664

HEADED PIN,1" x 4"

1 x 4; 2

4шт.

6

495-11106

WASHER,1", SAE

6шт.

7

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.

8

521989R1

SPACER,1" Pipe x 15/16"

4шт.

9

192584A1

BAR

Door Link

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

12

231-1448

NUT,1/2"-13, GB

8шт.

13

1270277C1

PIVOT

Door, Front, Includes 14

1шт.

14

458900R1

SPACER

1шт.

15

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

4шт.

16

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2шт.

17

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

2шт.

18

1270278C1

PIVOT

Door, Rear, Includes 19

1шт.

19

458900R1

SPACER

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

21

492-11038

LOCK WASHER,3/8"

16шт.

22

425-106

NUT,3/8"-16, Cl 5

16шт.

23

140003A3

CONDUIT

Door

1шт.

24

224904A1

SUPPORT

Door

1шт.

Arms, Channels and Struts

1шт.

25

127164A1

SUPPORT

Door chain

4шт.

26

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

27

1260289C4

SUPPORT

Upper

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

29

28464R1

SELF-TAP SCREW

If Used

6шт.

30

1979644C1

CLIP,ELECTRICAL

Brush, If Used

6шт.

31

248439A1

SUPPORT

Lower

1шт.

32

1278102C1

BRUSH, COMMUTATOR

BRUSH , Door Slat, If Used

2шт.

33

425-108

NUT,1/2" - 13, Gr 5

4шт.

34

237012A2

SUPPORT

Basket Door Support

2шт.
